  3. OP1604, GPON OLT, 4* GPON port,2*10GE/GE SFP,2*GE RJ45,AC power
OP152G

OP1604, GPON OLT, 4* GPON port,2*10GE/GE SFP,2*GE RJ45,AC power

(0 review)
P/N: OP1602

Models:


$ 809.00 $ 809.00 Tax Excluded
¥ 809.00 Tax Excluded

Not Available For Sale

($ 0.00 / Units)

    This combination does not exist.

    • ZISA provides professional tech support and sales inquiry.
    • ZISA's engineer support customized according your inquire.

    Customized Now​​​​

    Contact Us

    Terms and Conditions
    14-Month Warranty I 7Days Return and Exchange | Shipping Within 5 Business Days

    Share

    ​ ​ ​ ​   ​
    OverviewFeaturesApplicationsSpecificationsVideosResources

    Overview

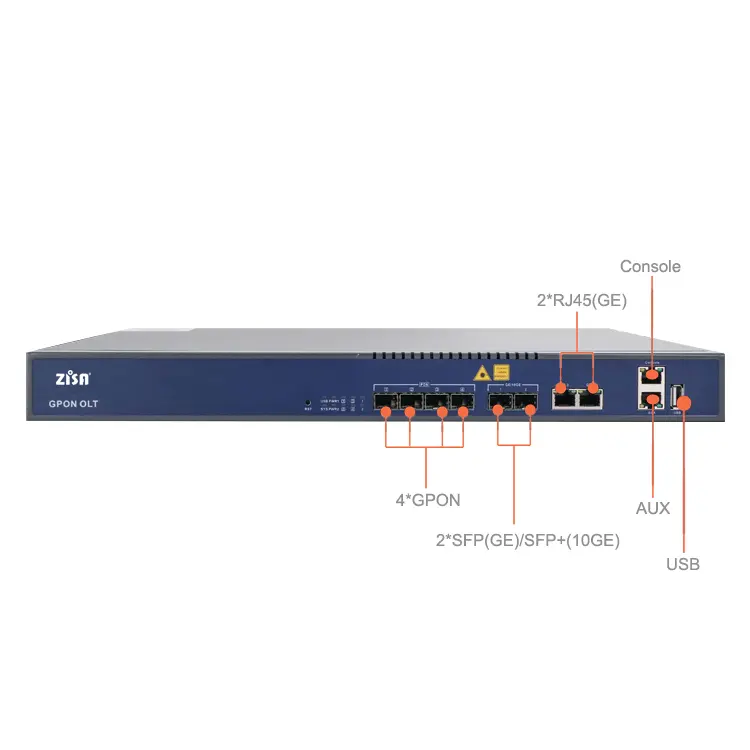

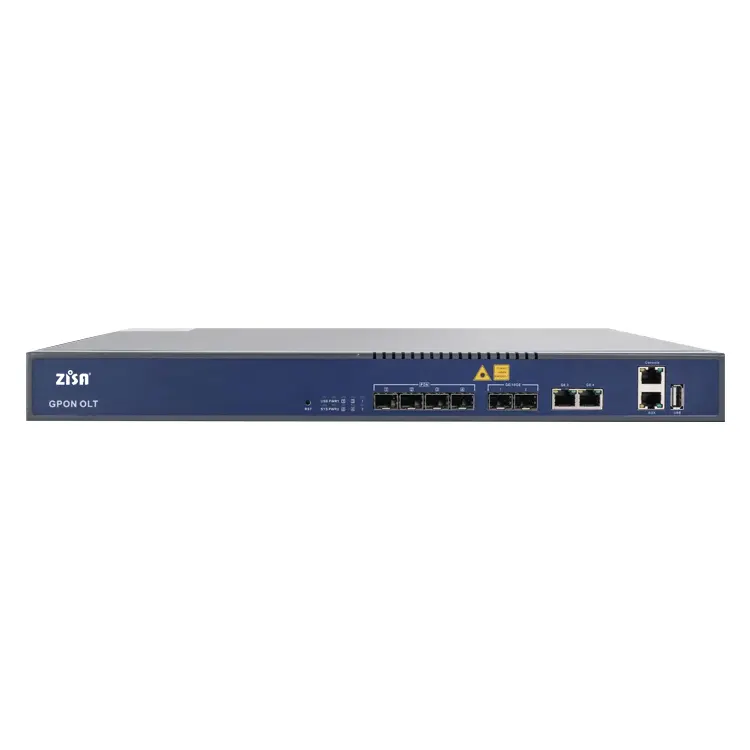

    OP1604, GPON OLT, 4* GPON port,2*10GE/GE SFP,2*GE RJ45,AC power

    The OP1604 is a pizza-box GPON OLT with 4 PON ports that meets flexible and fast FTTx access, suiting the scenarios such

    as sparse/ remote/cost-sensitive area,smart industrial park, commercial building and FTTM, etc.

    Features


    • Compact design, meets various application scenarios

                 Supports the deployment in diverse scenarios including low density areas, remote areas, sparsely-populated areas and industry parks.

                 Supports FTTM and sharing site/rack with wireless base stations.

    • Small size and lightweight, easier to delivery and install

                 Small size and lightweight, easy to transport and install.

                 Supports multiple installation modes, like limited room space,basement, low-voltage room and small rack or cabinet.

    • Carrier-class security protection, support dynamic routing protocol RIP&OSPF, ensure the safe operation of network

                 Supports uplink redundancy protection including LACP STP,RSTP and MSTP, and support RIP&OSPF protocol. Supports link protection.

    • Lower TCO

                 Dramatically saves on investment fees in trunk fibers, pipe engineering, and facilities. Effectively reduce CapEx and OpEx.

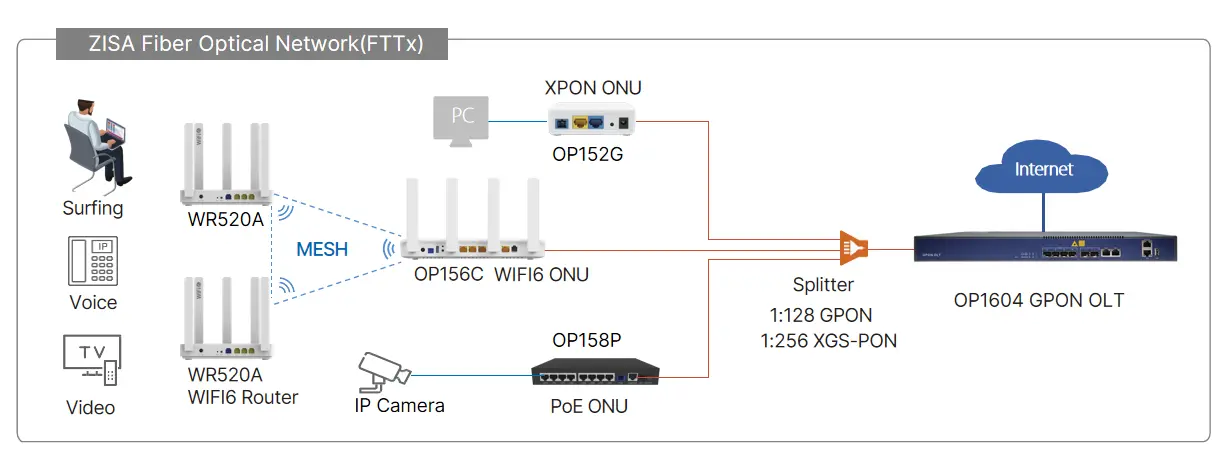

    Applications

    Specifications



    OP1601

    OP1602

    OP1604
    OP1608

    OP1616
    GPON Port

    1

    2

    4

    8

    16

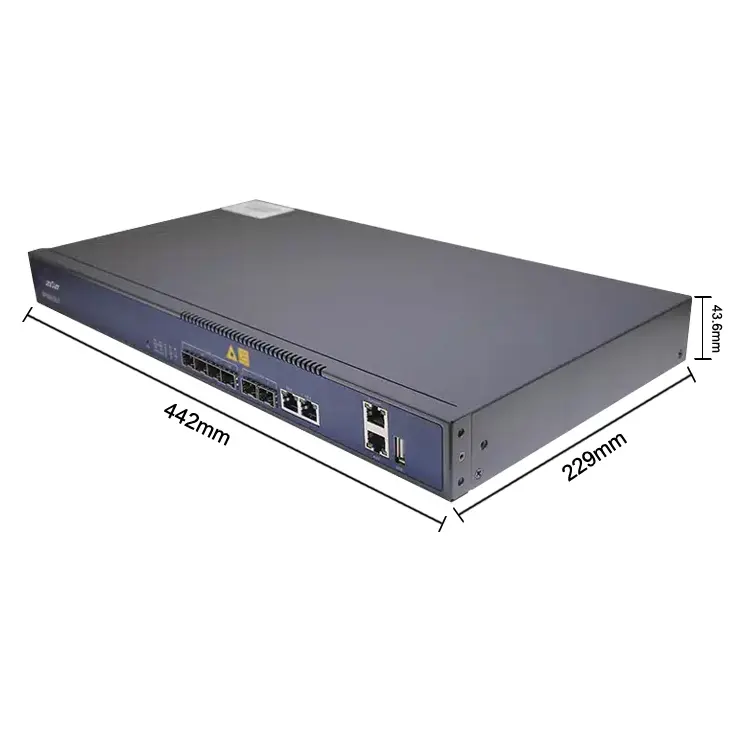

    H x W x D (mm)

    210mm*173mm*43.6mm

    		442mm*200mm*43.6mm 442mm*229mm*43.6mm442mm*319mm*43.6mm

    442mm*319mm*43.6mm

    Maximum Weight (Including Mounting Brackets)

    1.07kg

    2.48kg

    4.15kg

    5.65kg

    6.40kg

     Backplane Bandwidth

    60

    		208104104

    208

    Port Forwarding Rate(Mpps)
    		21.57640.17647.61668.448

    124.992

    Power Consumption

    24W

    		35W35W45W

    85W

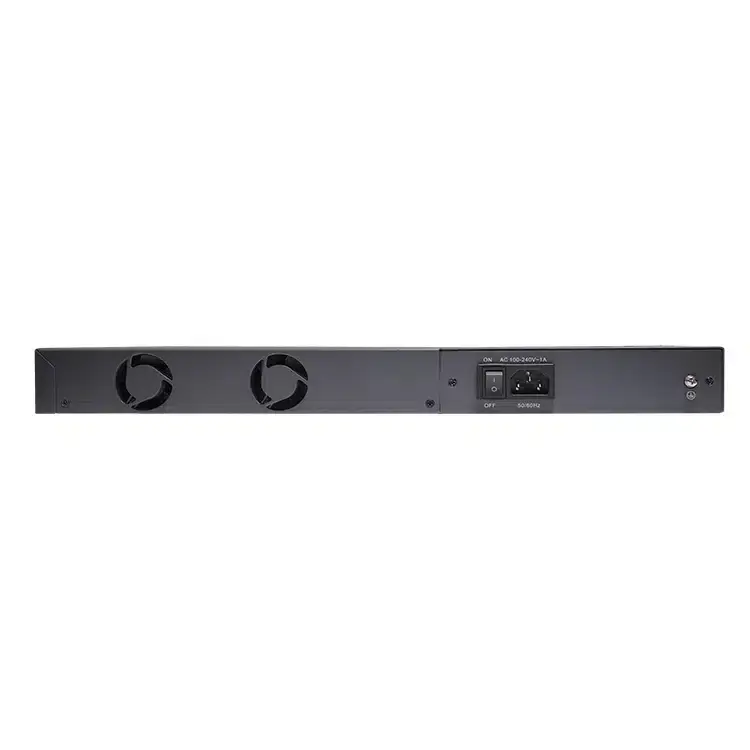

    Power Configuration

    1*DC

    1*AC(Default)

     1*AC+1*DC

    1*AC power; 1*DC power;

    2*AC power;

    2*DC power;

    1*AC power + 1* DC power.

    1*AC power

    2*AC power

    2*DC power

    1*AC power + 1* DC power

    1*AC power

    2*AC power

    2*DC power

    1*AC power + 1* DC power

    1*AC power

    2*AC power

    2*DC power

    1*AC power + 1* DC power

    Working Temperature

     -20°C ~+60°C

    		 -20°C ~+60°C  -20°C ~+60°C  -20°C ~+60°C

    20°C ~+60°C

    Storage Temperature

    -40~+70°C

    		-40~+70°C-40~+70°C-40~+70°C

    -40~+70°C

    Relative Humidity

    5~95% (non-condensing)

    5~95% (non-condensing)

    		5~95% (non-condensing)5~95% (non-condensing)

    5~95% (non-condensing)

    Management Mode
    		Console/WEB/Telnet/CLIConsole/WEB/Telnet/CLIEMS, WEB, SNMP, Telnet , CLIEMS, WEB, SNMP, Telnet , CLI

    EMS, WEB, SNMP, Te

    Supported PON module level
    		Class C++/Class C+++Class C++/Class C+++/Class C++++Class B+, C, C+, C++, C+++，C++++Glass B+, C, C+, C++, C+++，C++++

    Glass B+, C, C+, C++, C+++，C++++


    Videos



    OP1601 Single Pon GPON OLT | ZISA


    Resources

      ZISA OP1604 GPON OLT DATASHEET
