  3. OP1608XGS, 10G XGSPON OLT, 8*XG(S)-PON/GPON port,1*GE(RJ45)+4*25GE(SFP28)+2*100GE(QSFP28), AC Power
OP152G

OP1608XGS, 10G XGSPON OLT, 8*XG(S)-PON/GPON port,1*GE(RJ45)+4*25GE(SFP28)+2*100GE(QSFP28), AC Power

(0 review)
P/N: OP1608XGS

Models:


$ 3,956.00 $ 3,956.00 Tax Excluded
¥ 3,956.00 Tax Excluded

Not Available For Sale

($ 0.00 / Units)

    This combination does not exist.

    • ZISA provides professional tech support and sales inquiry.
    • ZISA's engineer support customized according your inquire.

    Customized Now​​​​

    Contact Us

    Terms and Conditions
    14-Month Warranty I 7Days Return and Exchange | Shipping Within 5 Business Days

    Share

    ​ ​ ​ ​   ​
    OverviewFeaturesApplicationsSpecificationsVideosResources

    Overview

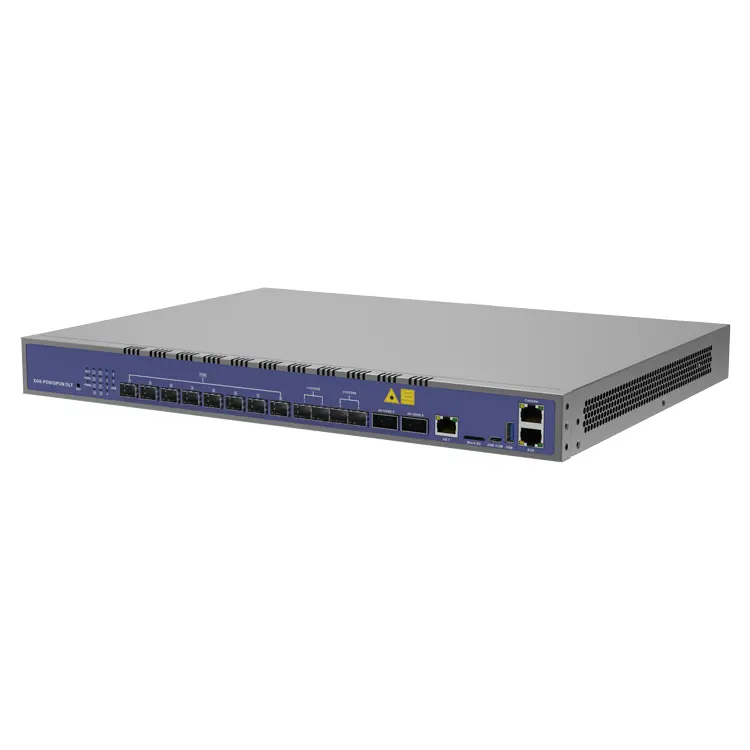

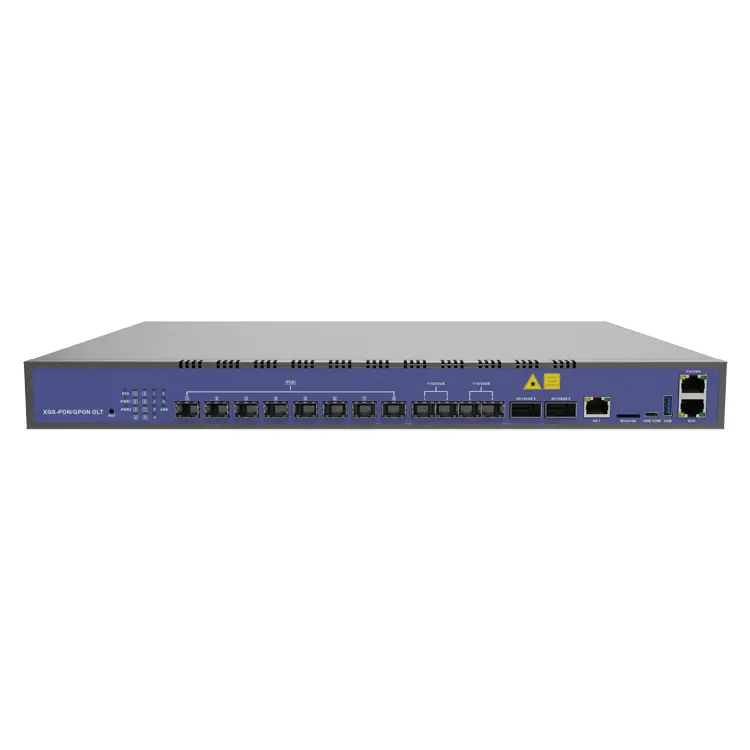

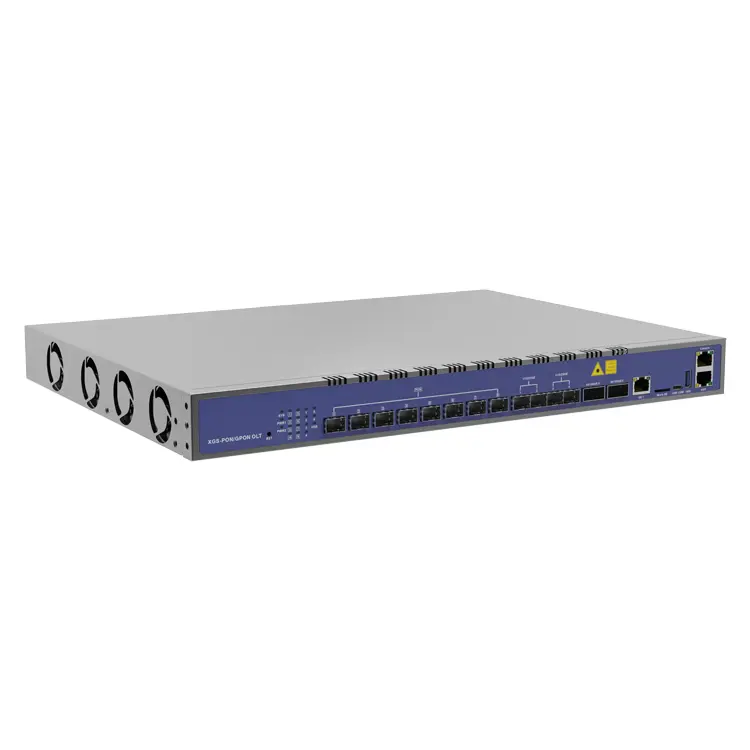

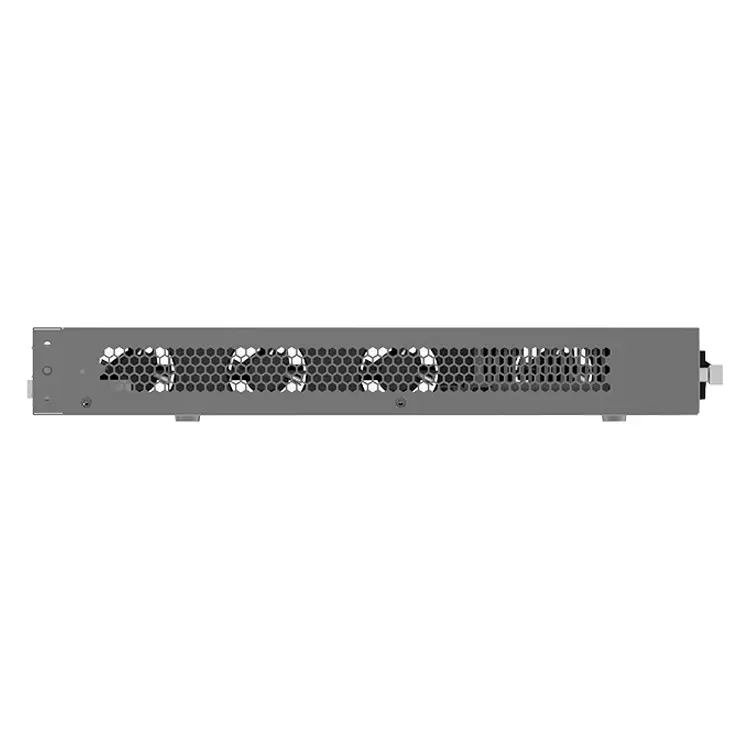

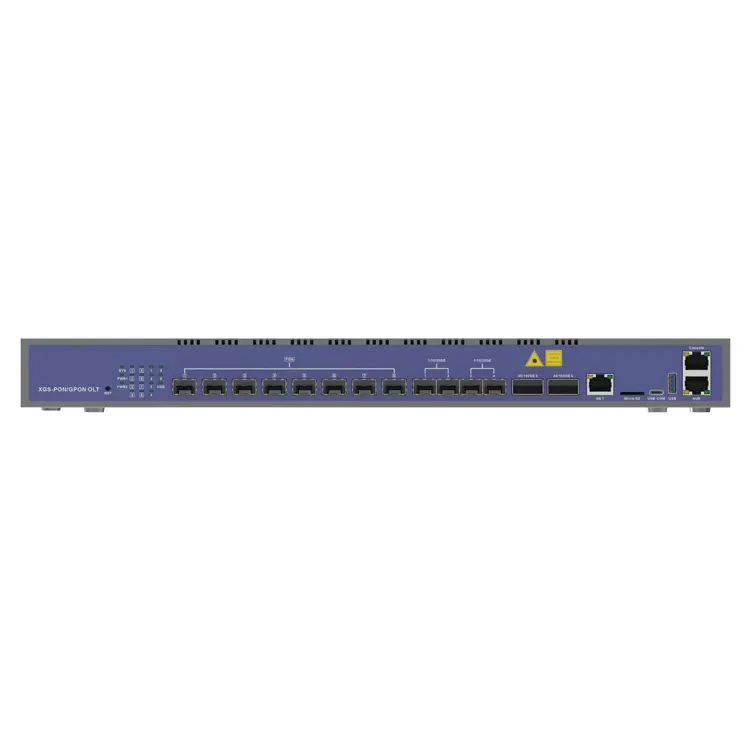

    OP1608XGS, 10G XGSPON OLT, 8*XG(S)-PON/GPON port,1*GE(RJ45)+4*25GE(SFP28)+2*100GE(QSFP28), AC Power

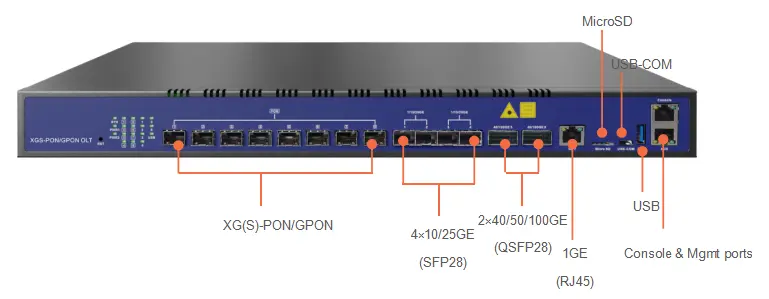

    OP1608XGS is an innovative 10G GPON OLT product with 8 PON ports and XG (S) - PON&GPON Combo compatibility, and also supports single GPON mode, giving customers more networking possibilities and facilitating customers to flexibly choose the appropriate bandwidth access mode according to current application conditions and future business upgrades. In the early stage of construction, customers can choose to consider reducing investment costs and switch any of the 8 PONs to single GPON mode, and then switch to XG(S)-PON&GPON Combo mode according to business needs in the future; they can also choose the smooth upgrade from GPON to XG(S)-PON, and switch to XG(S)-PON&GPON Combo mode in the early stage, considering the stability of the original business during future upgrades.OP1608XGS provides 1*GE (RJ45) + 4*25GE (SFP28) + 2*100GE (QSFP28) uplink ports to achieve full-speed data forwarding and meet the needs of high-bandwidth, high-speed data transmission and large-scale deployment.

    Features


    •  High Performance Chipset
    •  100Gbps QSFP28 High-Speed Uplink
    •  Supports XGS-PON/XG-PON/GPON triple mode for Flexible Networking

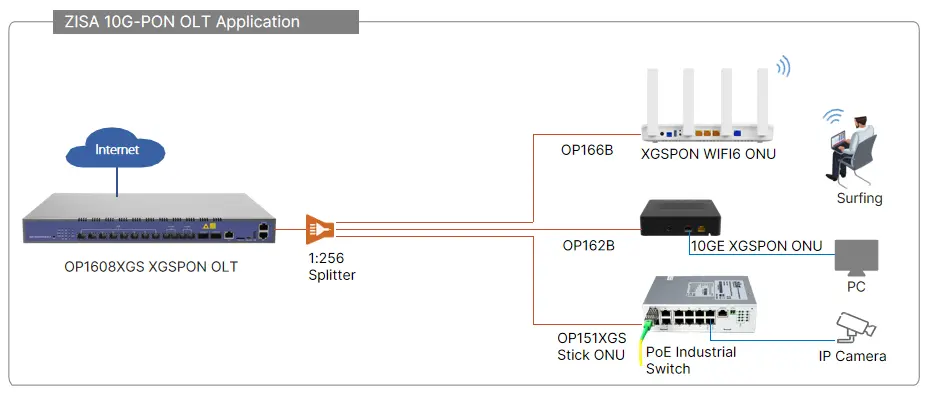

    Applications

    Specifications

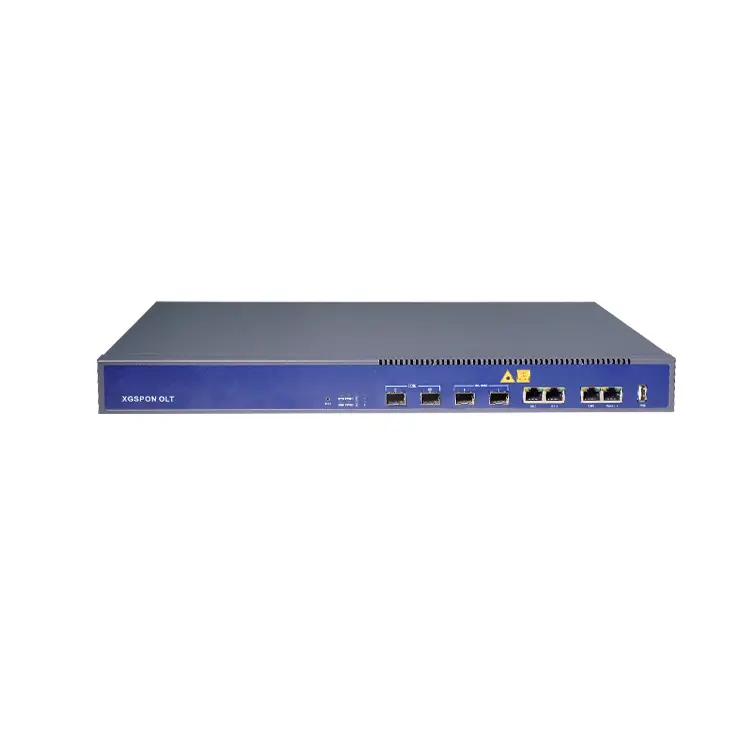

    OP1602XGS

    OP1608XE

    OP1608XGS
    PON Port

    2*XG(S)-PON/GPON Port

    8*10G EPON Port

    8*XG(S)-PON/GPON Port

    H x W x D (mm)

    442mm*200mm*43.6mm

    		442mm*369mm*46.6mm442mm*330mm*43.6mm
    Maximum Weight (Including Mounting Brackets)

    2.48kg

    3.9kg

    4.8kg

    Backplane Bandwidth (Gbps)

    208

    		8801960
    Port Forwarding Rate(Mpps)
    		124.992523.776566.928
    Power Consumption

    40W

    		145W150W
    Power Configuration

    1*AC power; 1*DC power;

    2*AC power;

    2*DC power;

    1*AC power + 1* DC power.

    1*AC power;

    2*AC power;

    1*AC power;

    2*AC power;

    Working Temperature

     -20°C ~+60°C

    		 -20°C ~+60°C  -20°C ~+60°C
    Storage Temperature

    -40~+70°C

    		-40~+70°C-40~+70°C
    Relative Humidity

    5~95% (non-condensing)

    5~95% (non-condensing)

    		5~95% (non-condensing)
    Management Mode
    		WEB , Telnet , CLISNMP, Telnet, HTTPs, SSHCLI(Console/Telnet/SSH)/WEB


    Videos



    OP1601 Single Pon GPON OLT | ZISA


    Resources

      ZISA OP1608XGS 10G PON OLT DATASHEET
