Overview

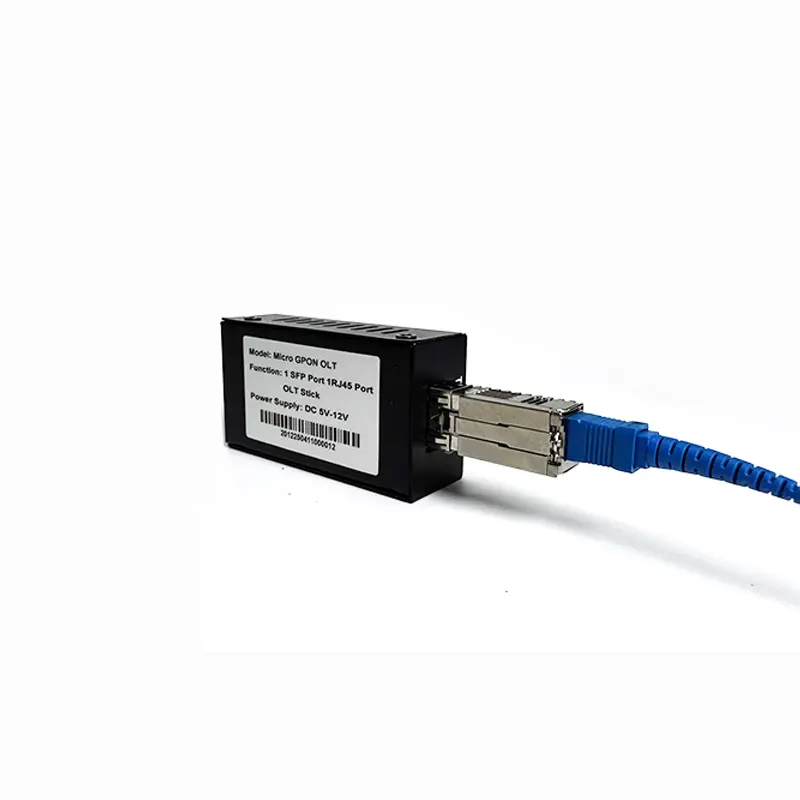

1Port GPON Micro OLT, 1310RX/1490TX 1.244G-RX/2.488G-TX 2dBm 8km SC/UPC, With 1GE OLT Case

Micro OLT is Stick OLT + 1GE Micro OLT Case, our complete OLT STICK based on SFP+ package with built-in PON MAC function, designed to solve the problem of rapid upgrade from traditional data communication network equipment to all-optical network equipment.

Through flexible module design, convenient port configuration is achieved, precisely adapting to the business requirements of differentscenarios, facilitating fault detection and maintenance, reducing costs, and facilitating the efficient and smooth transition of the network to the all-optical.

Features

• Data link and rate: Single-fiber bidirectional data link, downlink rate 2.488Gbps, uplink rate 1.244Gbps, with GPON MAC function.According to the SFP+ port rate, the 1.25G port or 2.5G port adaptation software can be upgraded by oneself.
• Interfaces and Functions: SFP+ package, SC interface, supports hot plugging.
• Transmission and Power Consumption: Supports a single-mode optical fiber transmission distance of 8 kilometers, with low power consumption (＜2.5w).
• Environmental adaptabilit: The enclosure temperature range is -40C to 85°C, and the working humidity range is 5% to 95% (non-condensing).
• Terminal support: Supports up to 32 ONU terminals at most.
• Network compatibilit: Compatible with the vast majority of HGU type ONUs on the market, supporting transparent transmission of SVLAN and CVLAN.
• Compatible with any third-party switches, routers and firewalls with oplical ports.
• The self-developed PC-based management software can quicky and efficiently query and manage small networks through local area networks. It is easy to operate and does not require professional network knowledge.
• The matching 1-port, 2-port and related switch products can assist customers in quickly forming micro OLT, mini OLT, embedded OLT and other related types of OLT to meet the needs of different scenarios, such as FTTR, FOL all-optical network, CCTV security.
• Support API interface expansion to make it easier for customers to develop their own management software, such as APP management.
• Pure bridge mode enables transparent transmission of all types of VLAN data

Specifications

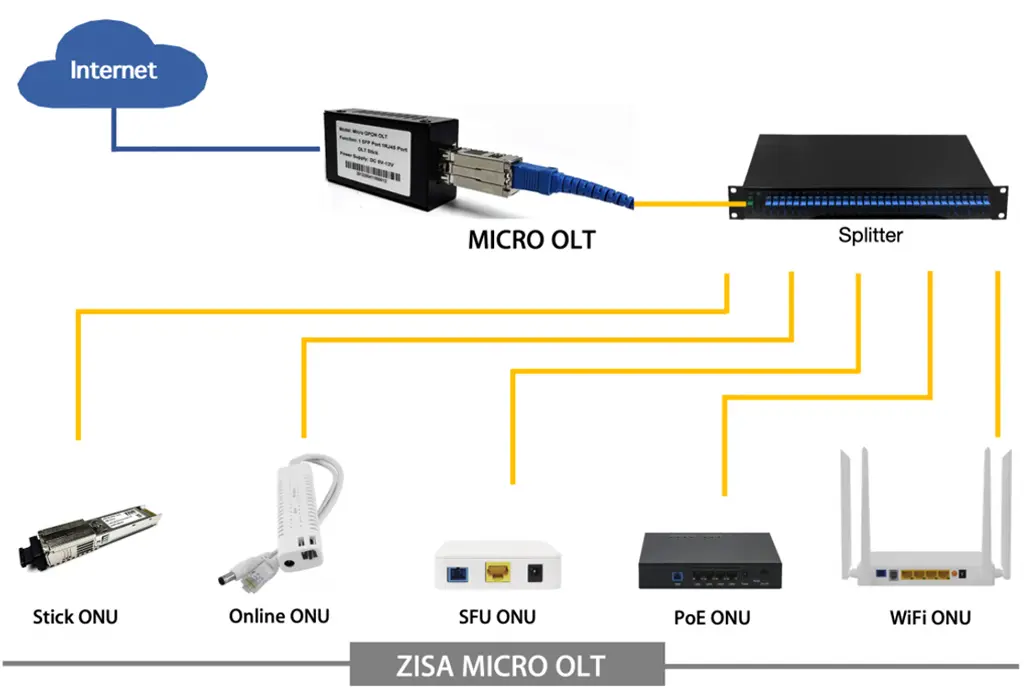

Applications​

Functions​

Plug and play and automatic registration: ONU terminals are plug and play, fully automatic registration, and transparent transmission of all vlans.

Optical port compatibility: Standard SFP+ package, compatible with 1/2.5/10G (set to forced rate) optical ports, enabling the rapid transformation of traditional Ethernet networks into PON optical networks.

Compatibility with third-party devices: Adhering to the standard GPON protocol, it is compatible with third-party HGU type ONUs. It can be used in different host environments, improving equipment utilization and flexibility.

Virtual OLT port: A single PON port of the virtual OLT enables operators to flexibly expand and manage the PON network without significant hardware investment.

Management Software

Comes with management software:

l Support fault display

l Support status display

l Support third-party API sharing

l Support windows Multi-Version

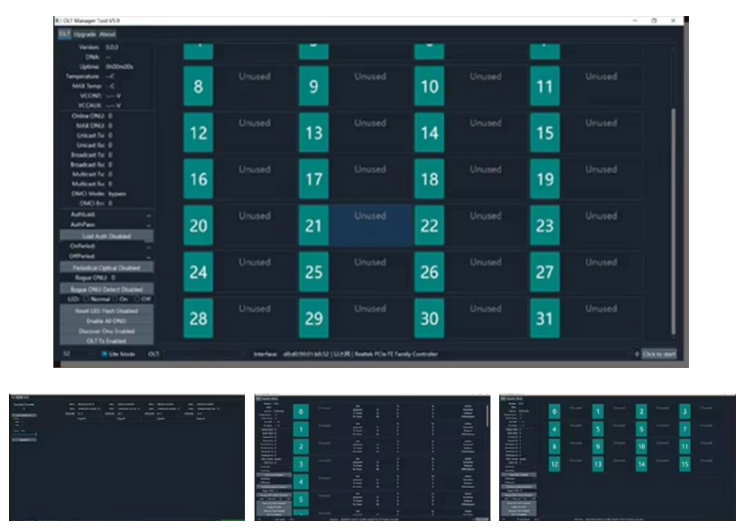

Software Interface Display

After installing the management software, the software automatically discovers the Stick OLT.

Videos​

Ordering Information​

Resources​

 ZISA OP161S Stick Micro Mini OLT Datasheet  ​​
