Overview

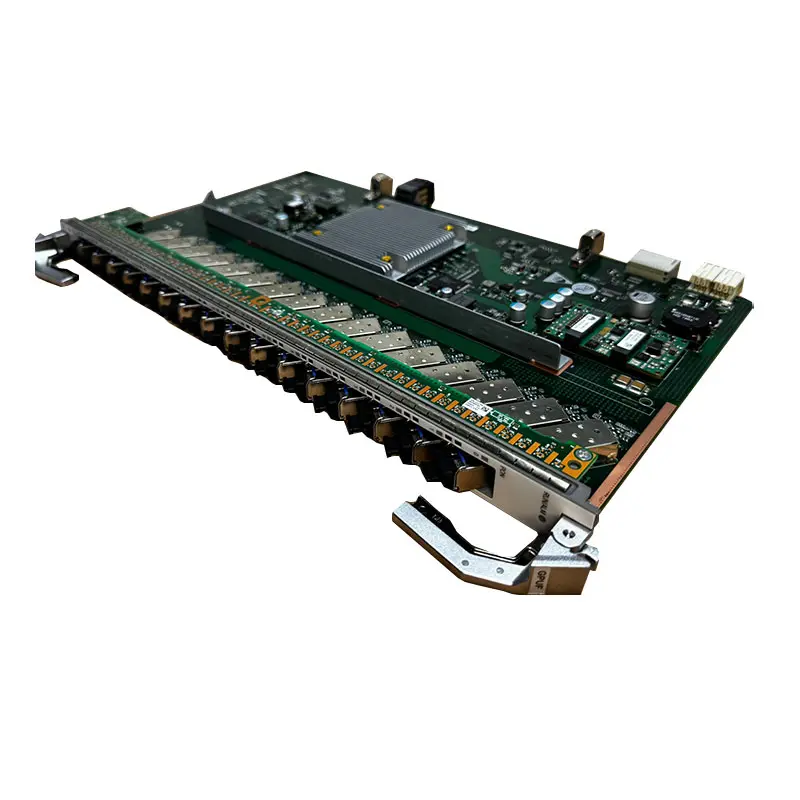

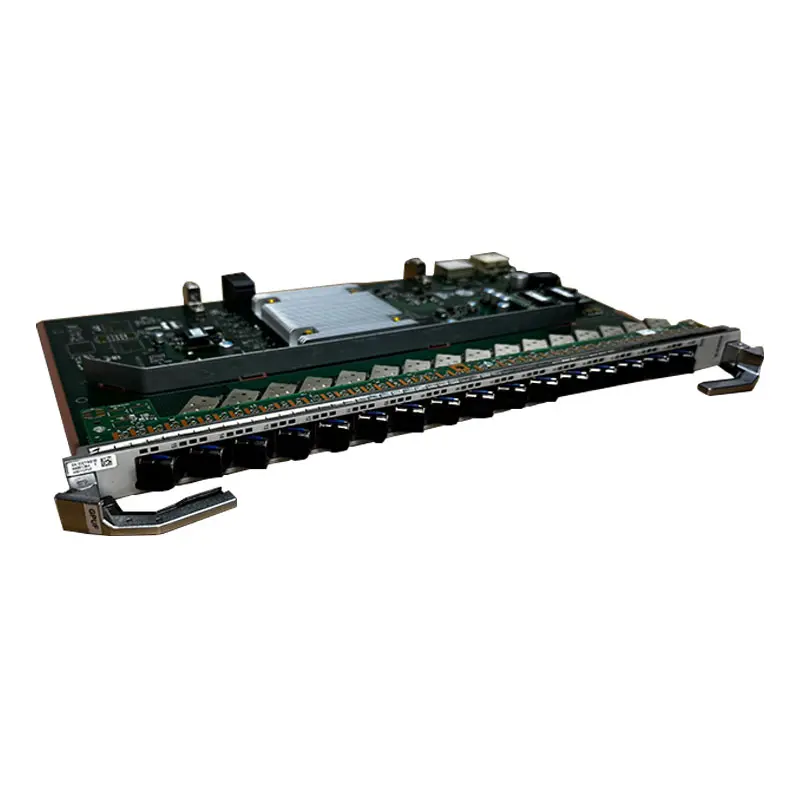

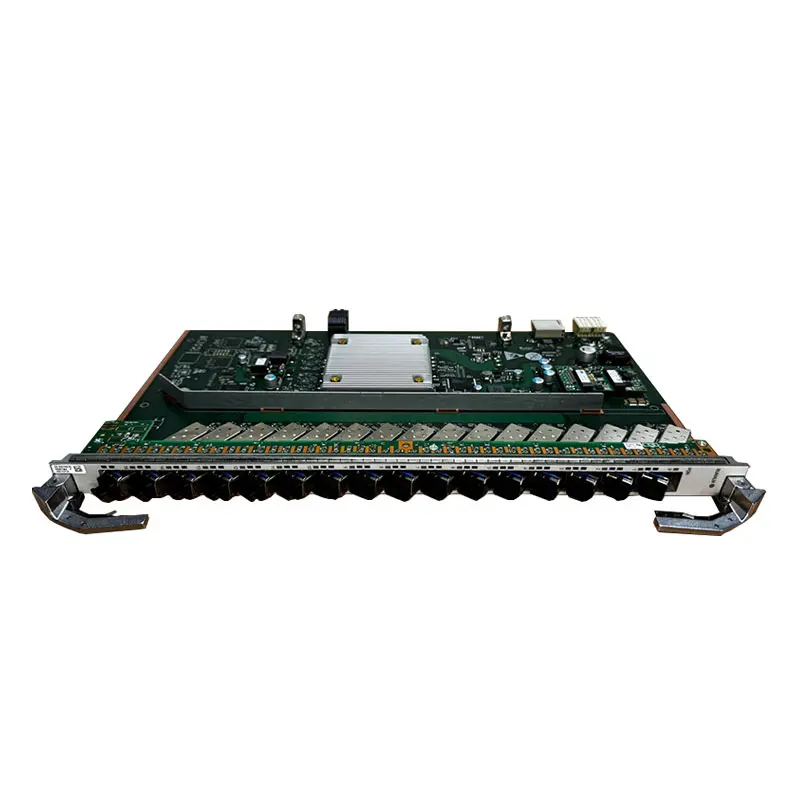

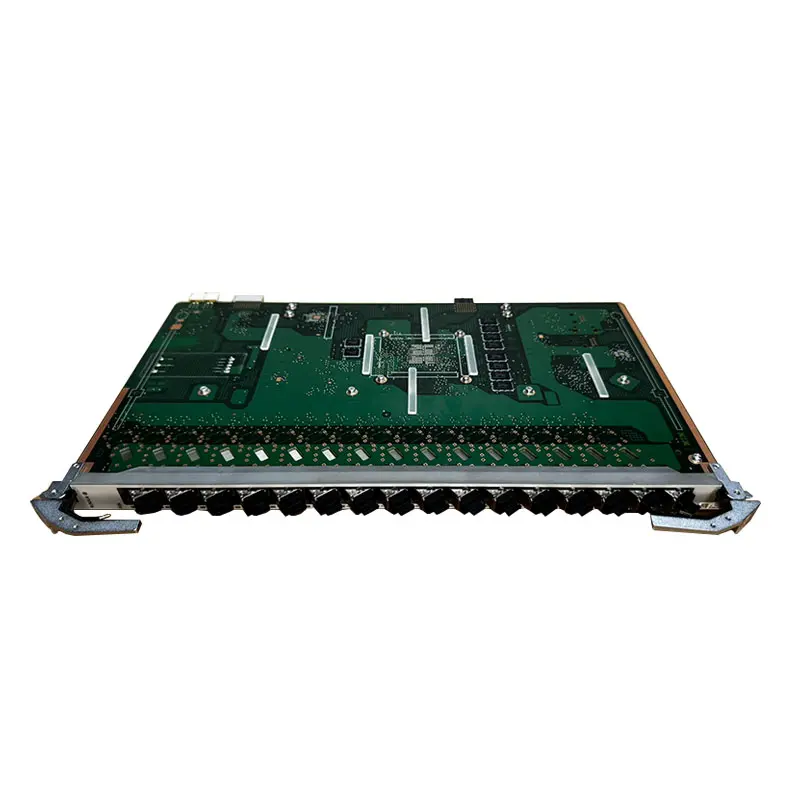

GPUF Service Card, 16*GPON Card With Class C++ SFP Module for MA5800 OLT Chassis

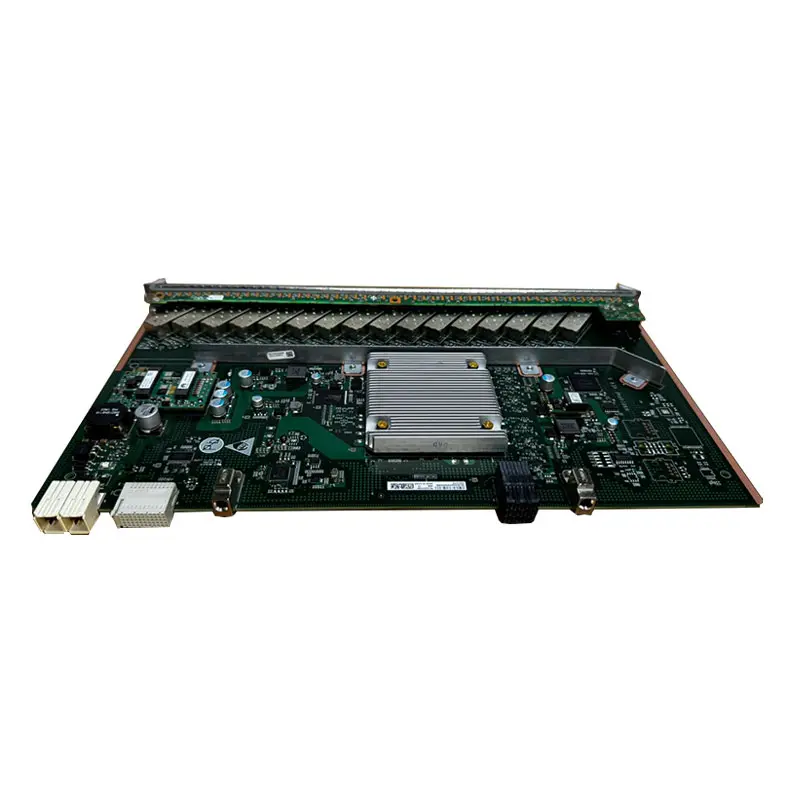

GPUF is a 16-port GPON OLT interface board, which works together with the ONU to implement GPON access services.
Features
- High density and energy-conversation
High density and low power consumption, supporting access of 2048 users
40km distance of two ONUs under the same PON port, simplifying
network planning
- Easy OAM
Real-time rogue ONT detection and isolation, ensuing stable service running
Variable-length OMCI, improving upgrade efficiency and reducing break off time
External Interfaces
16 GPON ports (SFP)
- Maximum split ratio
Class B+: 1:64
Class C+/C++: 1:128
Applications

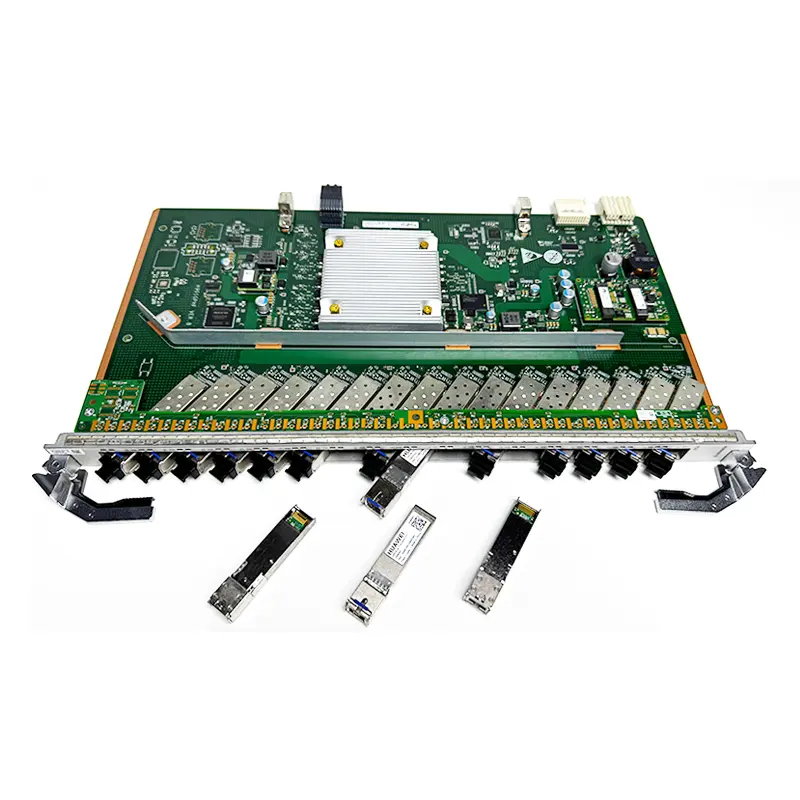

GPUF Service Card, With SFP Module Class C+, C++

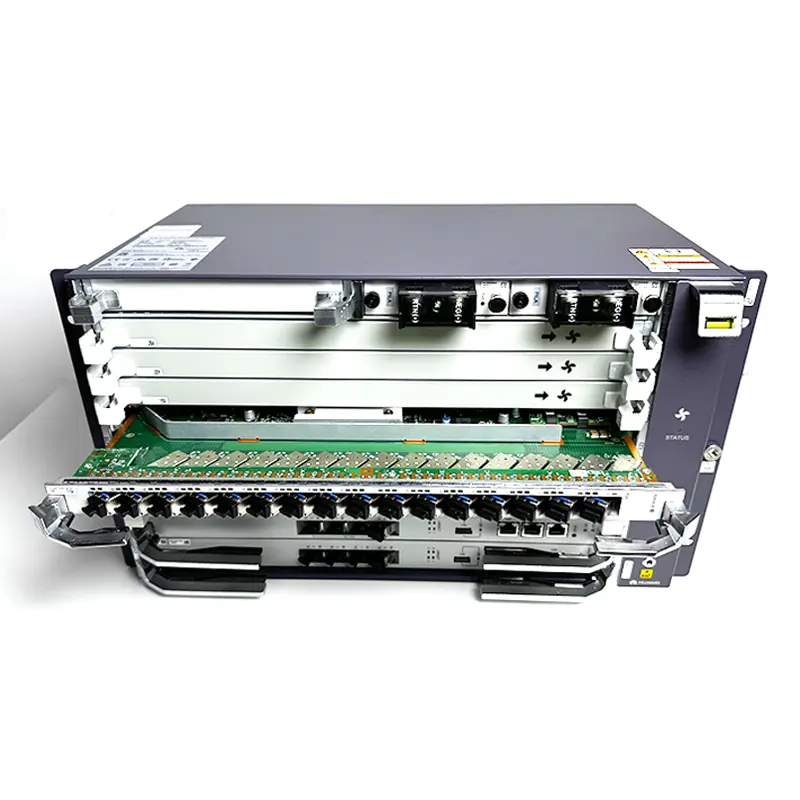

GPUF Service Card, Can be inserted into MA5800-X2, X7, X15 and X17 OLT Chassis
Specifications
Function | |
Forwarding capability | 40 Gbit/s |
T-CONTs per PON port | 1024 |
Service flows per PON board | 16368 |
Maximum frame size | 2052 bytes |
Maximum number of MAC addresses | 16384 |
Maximum distance difference between two ONUs under the same PON port | 40 km |
FEC | Bidirection |
CAR group | Supported |
HQoS | Not supported |
Variable-length OMCI | Supported |
ONU-based shaping or queue-based shaping | Supported |
Type B protection (dual-homing) | Not supported |
Type B protection (single-homing) | Supported |
Type C protection (dual-homing) | Supported |
Type C protection (single-homing) | Supported |
1588v2 | Not supported |
Rogue ONT detection and isolation | Supported |
Automatic shutdown at high temperature | Supported |
Energy saving for service boards | Supported |
Environment |
|
Operating temperature | -40 C to +65 C |
Power consumption | Static: 25 W Maximum: 50 W |

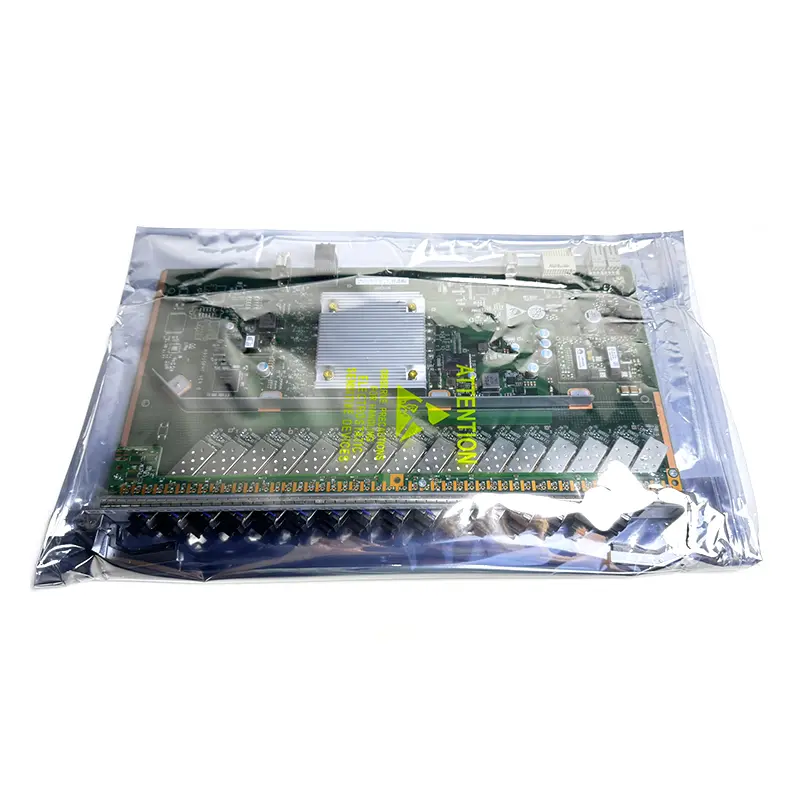

Packaging
Ordering Information
Product Model | Product Description | Accessories |
GPUF C++ Card | 16-Port GPON Card (With 16Pcs Class C++ SFP module) | NA |
GPUF C+ Card | 16-Port GPON Card (With 16Pcs Class C+ SFP module) | NA |
GPUF Card | 16-Port GPON Card (without SFP module) | NA |
Package Size
Product Model | Packing Size(cm) | Packing Weight(Kg) |
GPUF Card | 47.3 x 32.7 x 6.6 | 3 |
