Overview

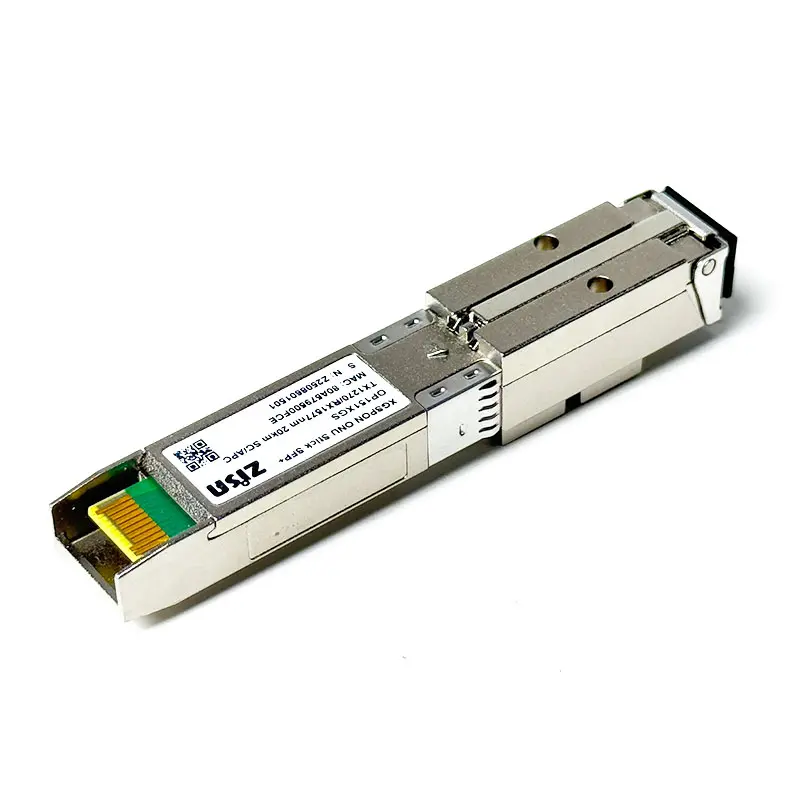

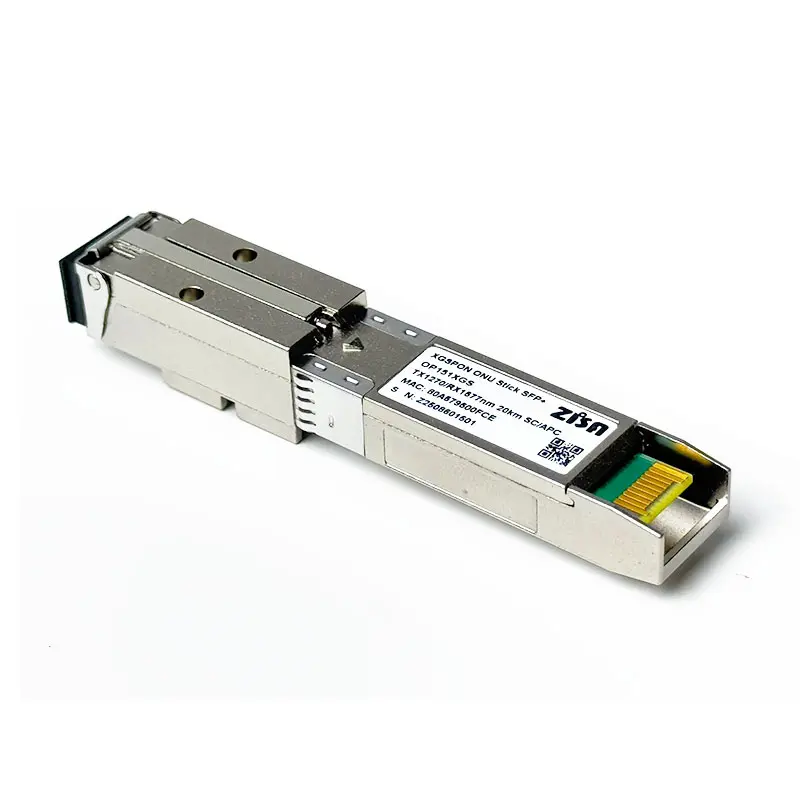

OP151XGS, XGS-PON ONU Stick SFP+,10G/10G, TX1270nm/RX1577nm,Class N1, 4-9dBm 20km, 8311 Firmware Web Management, Industrial -40°C-85°C SC/APC

The OP151XGS XGS-PON ONU Stick SFP+ is a high performance module for single fiber communications that can be plugged into the SFP optical port of switch or router device to provide XGS-PON fiber network access to the device. The XGS-PON ONU Stick is based on the mature XGS-GPON/XG-PON technology, highly reliable and easy to maintain. And it is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.

Highlights

• Single fiber bi-directional data links symmetric TX 9.953 Gb/s / RX 9.953 Gb/s with MAC function
• Hot-pluggable capability SFP package with SC/ APC receptacle
• 8311 Firmware Version with Web management
• Case temperature range: Industrial -40 °C to 85 °C
• Support of GPON/XGS-PON/NGPON2 standards
• 256 GEM/XGEM ports, 64 T-CONTs or 16 LLIDs
• Available Configuration PON SN (ONT ID), Vendor ID, Equipment ID, Logical ONU ID, Logical password, and MAC address.
• High power 1270 nm DML DFB LD and high sensitivity 1577 nmAPD
• Support 20km transmission distance with SMF
• CML compatible data input/output interface
• Low EMI and excellent ESD protection
• Digital diagnostic monitor interface

Features​

Compatible with Ubiquiti, MikroTik, Netgate, TP Link,10G Switches and Routers, 8311 Firmware Version with Web management, Chipset: MaxLinear PRX126 (SMF, 9.953G-TX/9.953G-RX,1270 nm-TX/1577 nm-RX, 20km, SC/APC, DDM)

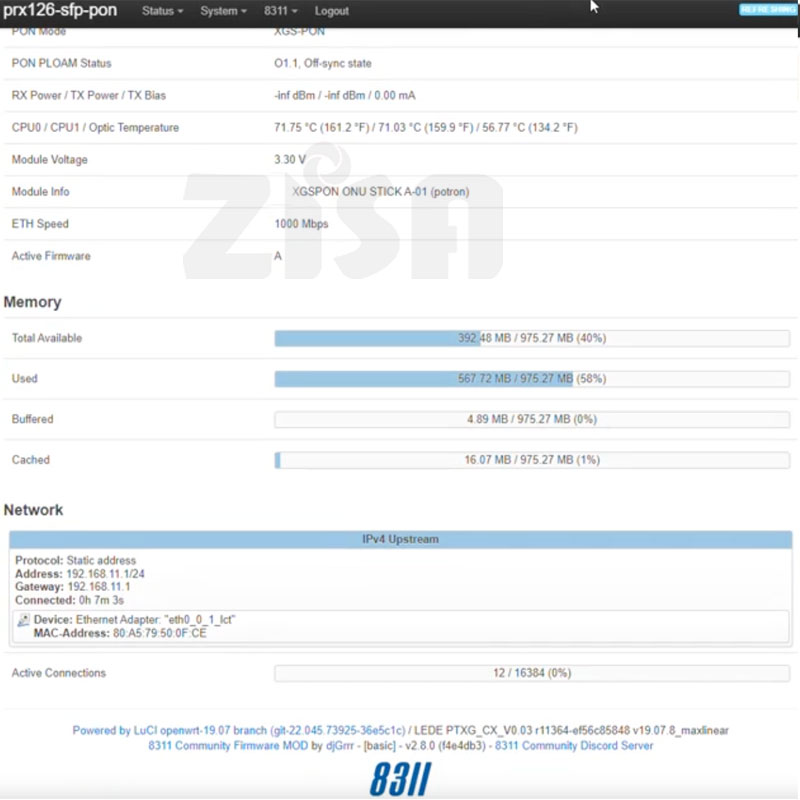

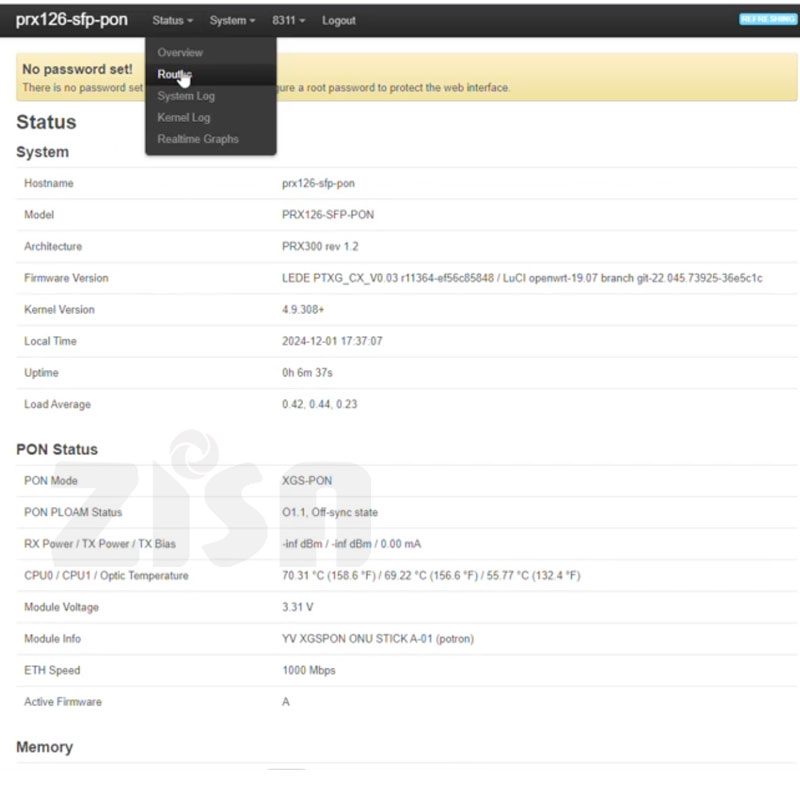

Firmware Compatibility, Supports 8311 community firmware. Streamlined device configuration with one-click web configuration. Access the interface at 192.168.11.1 using username root (no password required)

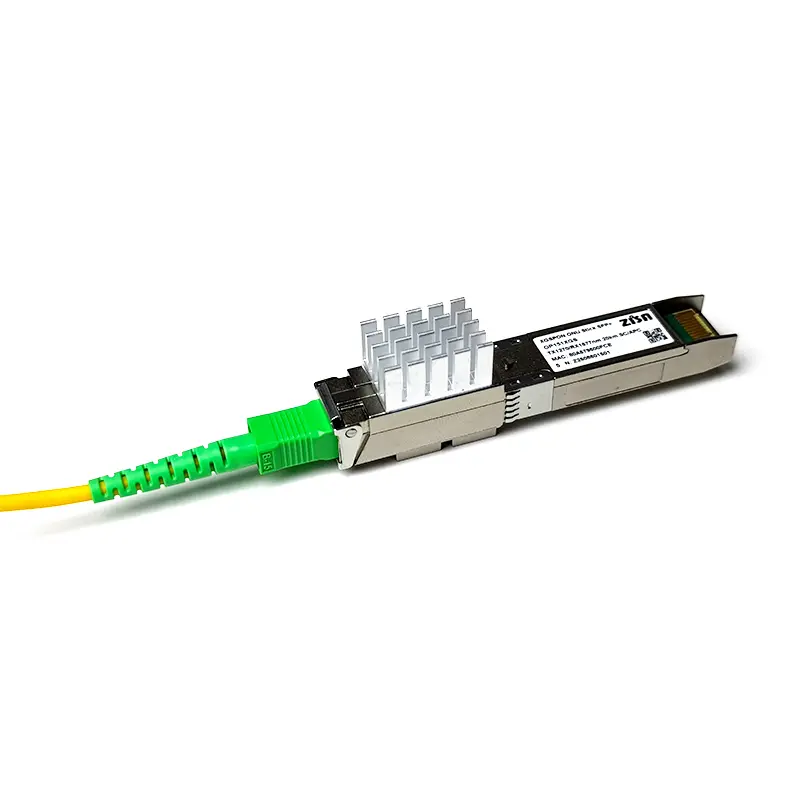

SFP package with SC /APC receptacle High power 1270 nm DML DFB LD and high sensitivity 1577 nm APD, Support 20km transmission distance with SMF, CML-compatible data input/output interface

Support Hot-pluggable capability Low power dissipation < 3W, Case temperature range: -40 °C to 85 °C, Low EMI and excellent ESD protection

Support of GPON/XGS-PON/NGPON2 standards, 256 GEM/XGEM ports, 64 T-CONTs or 16 LLIDs

Available configuration of parameters for PON serial number (ONT ID), Vendor ID, Equipment ID, Logical ONU ID, Logical password, and MAC address.

Carrier Grade QoS Engine, Supports Synchronous Ethernet (SyncE),Advanced loopback and diagnostic capabilities

Complies with ITU-T G.987.2, Complies with ITU-T G.9807.1, G.9807.2 , Complies ITU-T G.988 OMCI L2 MAC Bridge (Up to 64 L2 bridges), G.8275/Y.1369/IEEE 1588v2, IEEE 802.1ag and ITU-TY.1731 Ethernet OAM delay & loss measurement hardware support.

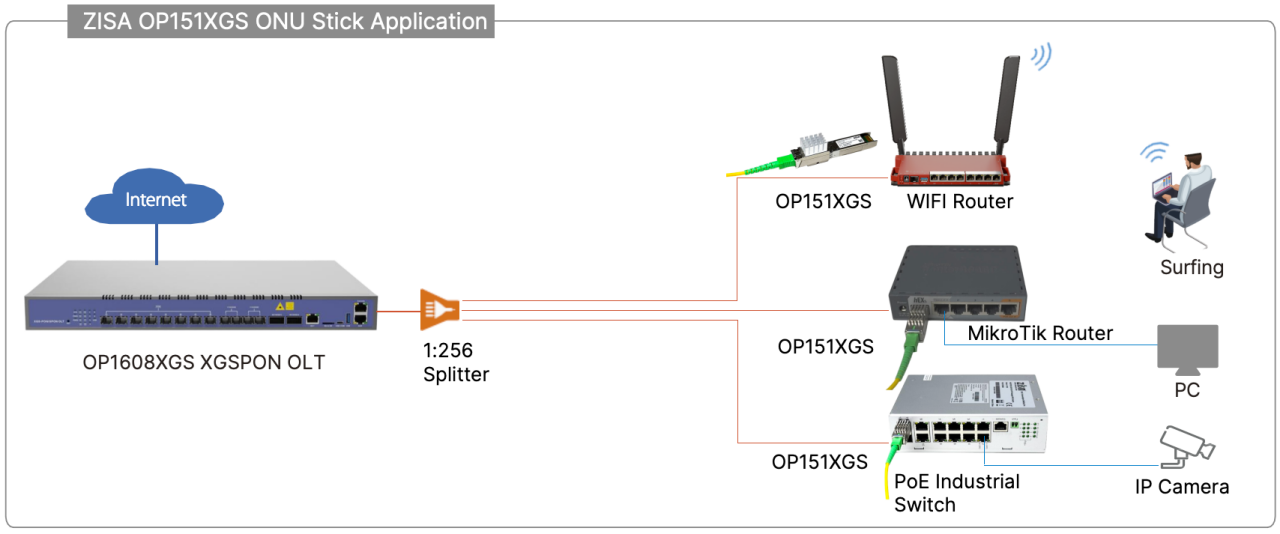

Applications​

• Residential home gateway

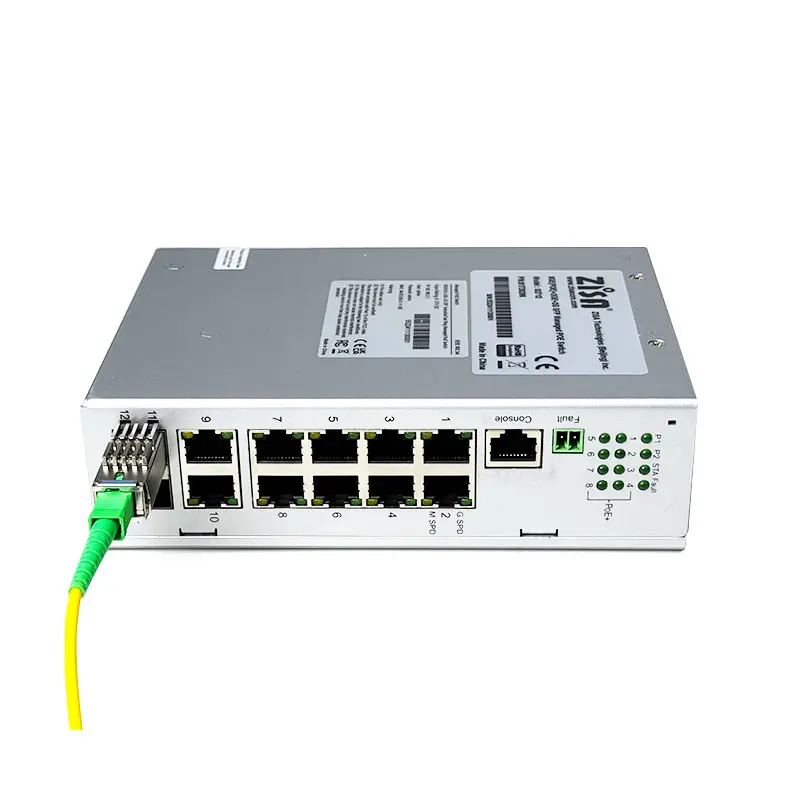

• Network switch/Router
• VDSL MDU, and G.fast, G.hn DPU
• Mobile backhaul

Specifications

Hardware Size

Software Functions

Absolute Maximum Ratings

 Recommended Operating Conditions

 Transmitter Optical Characteristics

Ordering Information​

Resources​

 ZISA OP151XGS XPON ONU Stick Datasheet
