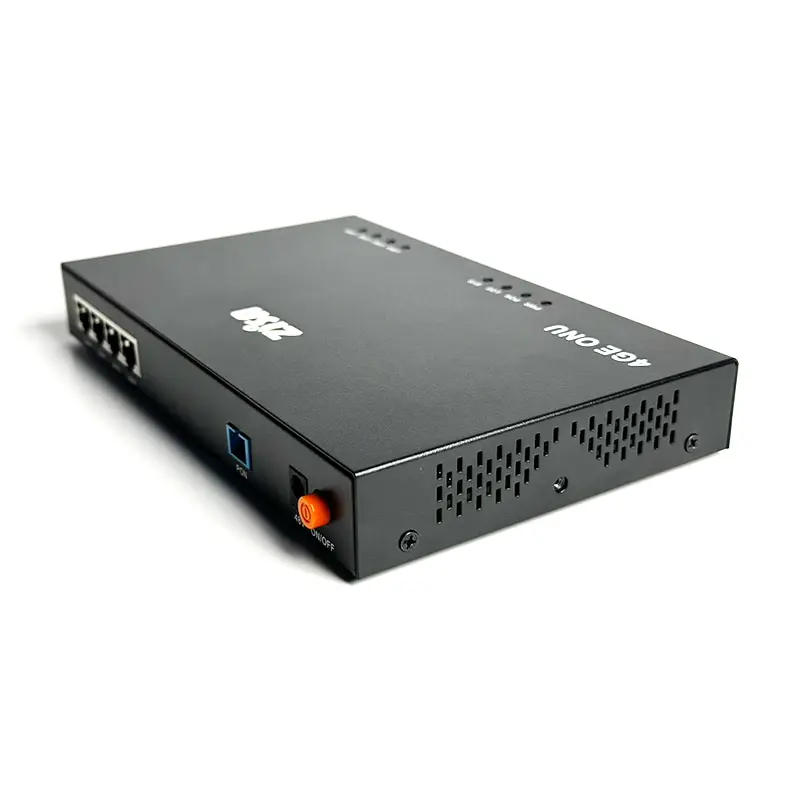

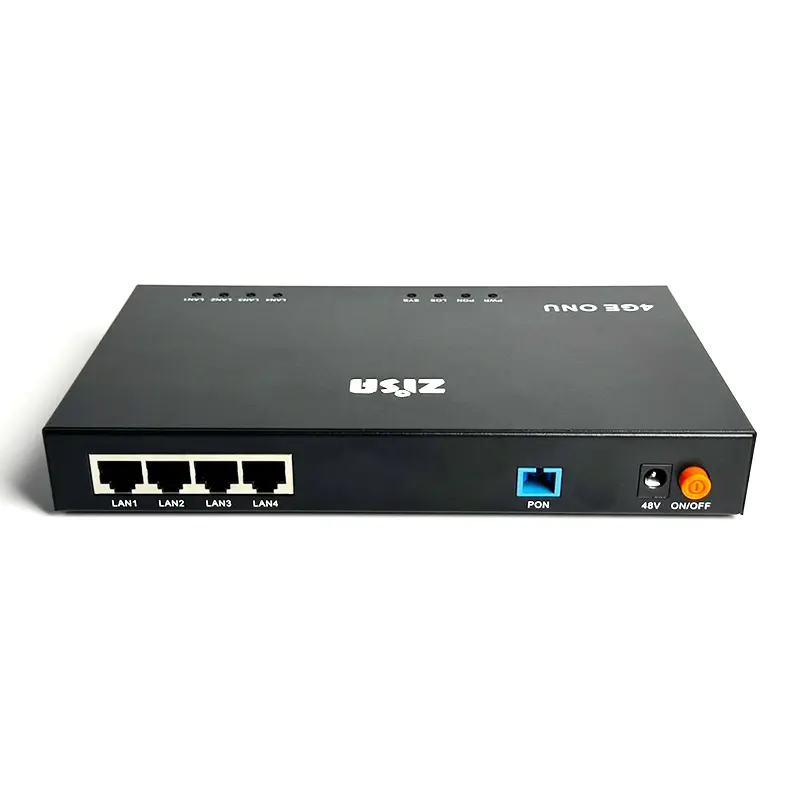

OP154P, PoE ONU SFU, 1*XPON (GPON+EPON), 4*GE PoE+, With PoE Power Adapter 54V,1.11A @60W, Iron Shell

(0 review)
P/N: OP154P

$ 49.30 $ 49.30 Tax Excluded
¥ 49.30 Tax Excluded

Not Available For Sale

($ 0.00 / Units)

    This combination does not exist.

    • ZISA provides professional tech support and sales inquiry.
    • ZISA's engineer support customized according your inquire.

    Customized Now​​​​

    Contact Us

    Terms and Conditions
    14-Month Warranty I 7Days Return and Exchange | Shipping Within 5 Business Days

    Share

    ​ ​ ​ ​   ​
    OverviewFeaturesApplications​Specifications Videos​Ordering Information​ Resources​

    Overview



    OP154P, XPON (GPON+EPON) SFU ONU, 1*PON, 4*GE PoE+, With PoE Power Adapter 54V,1.11A @60W, Iron Shell

    OP154P is a broadband access device specially designed to meet the needs of telecom operators for FTTO (Office), FTTD (Desktop), FTTH (Home), SOHO access, and video surveillance access.This ONU is based on high-performance chip solutions, and also supports Layer 2 functions, providing data service for carrier-grade FTTH applications.

    The 4 network ports of this ONU all support PoE function, which can power IP cameras, wireless APs, and other devices through network cables.This ONU has high reliability, is easy to manage and maintain,and can provide QoS guarantee for various data services. It conforms to a series of international technical standards such as IEEE802.3ah and ITU-T G.984.

    Features

    • XPON Dual Mode,Adaptive EPON/GPON
    • Detection of illegal ONU
    • Firewall Functions
    • IEEE802.3at PoE+,Maximum output of 30W per port

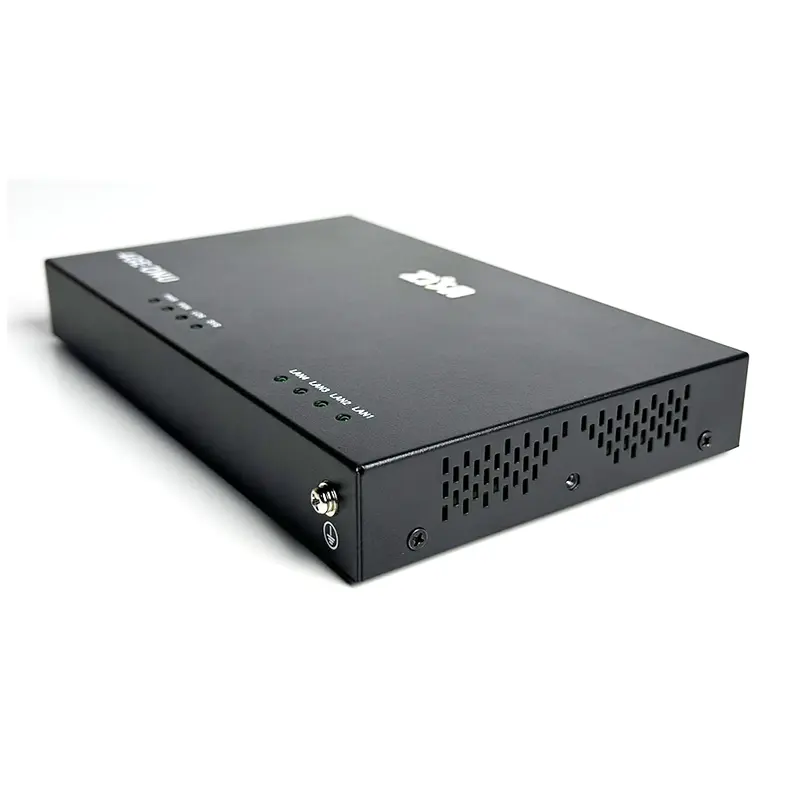

    • Iron shell, Better heat dissipation and more durable

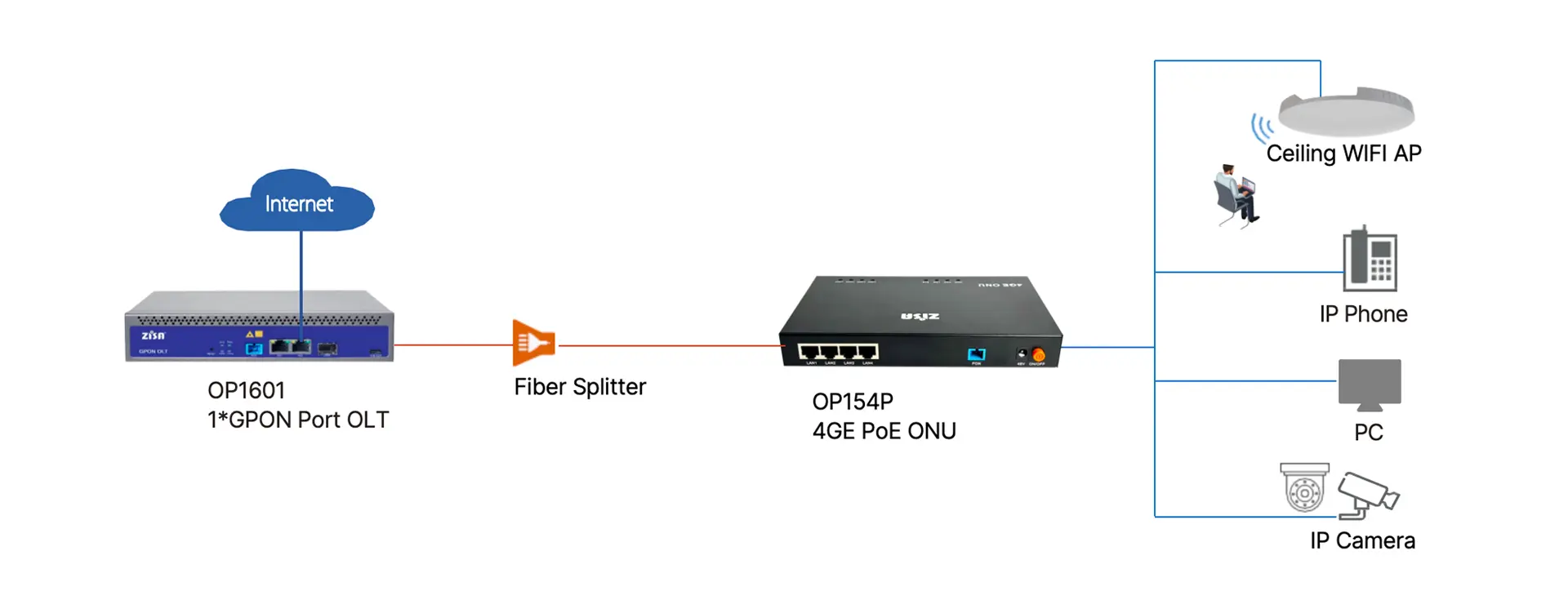

    Applications​

    Specifications

    Hardware Parameter

    Dimension

    205*125*28mm(L×W×H)

    Packing Weight

    26x26x4.5cm/1.2Kg

    Operating Condition

    Operating temp: -10 ~ +55°C

    Operating humidity: 10 ~ 90% (non-condensing)

    Storing Condition

    Storing temp: -30 ~ +70°C

    Storing humidity: 10 ~ 90% (non-condensing)

    Power Adapter

    DC 54V, 1.11A, external AC-DC power adaptor

    Power Supply

    ≤60W

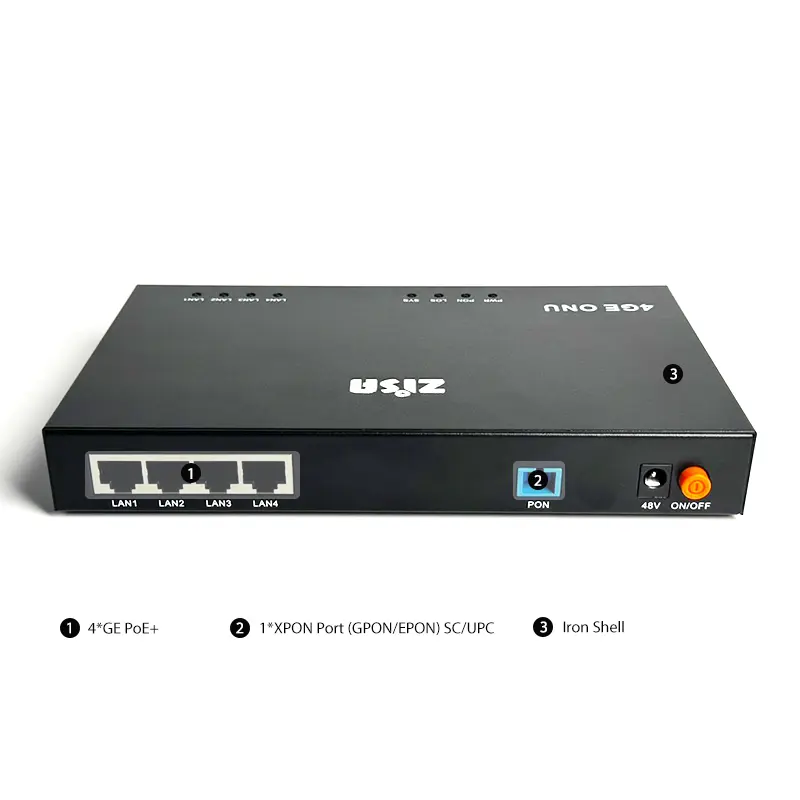

    Interfaces

    4*GE(PoE+)

    Indicators

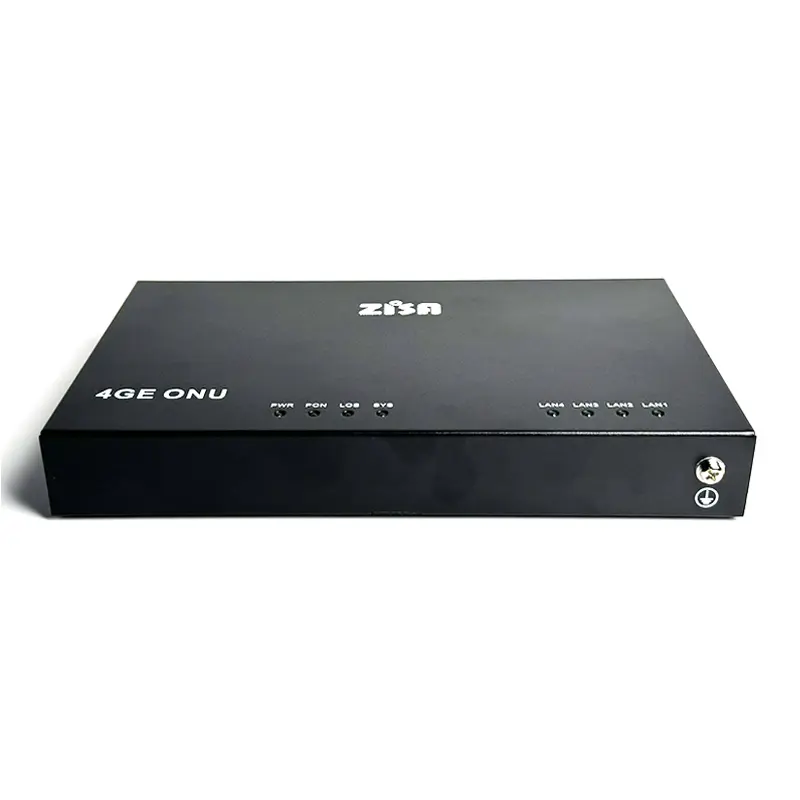

    Power, PON, LOS, SYS,LAN1-4


    Interface Parameter

    PON  Interface

    1XPON port(EPON PX20+ and GPON Class B+)

    SC single mode, SC/UPC connector

    TX optical power: 0～+4dBm

    RX sensitivity: -27dBm

    Overload optical power: -3dBm(EPON) or  -8dBm(GPON)

    Transmission distance: 20KM

    Wavelength: TX 1310nm, RX1490nm

    LAN  Interface

    4*GE(PoE+), Adaptive Ethernet interface, RJ45 connector


    Function Data

    PON Mode

    XPON Dual Mode , Can access mainstream EPON/GPON OLT

    Abnormal Protection

    Supports detecting illegal ONUs

    Firewall Function

    Support DDOS, Filtering Based on ACL/MAC/URL

    Basic functions

    MPCP discovery and registration

    Mac/oid/Mac+Loid authentication

    Triple Churning

    DBA bandwidth

    automatic detection, configuration, and firmware upgrade

    SN/Psw/oid/oid+Psw authentication

    Alarm

    Dying Gasp

    port loop detection

    Eth Port Loss

    LAN

    Supports port rate restrictions

    Supports loop detection

    Supports flow control

    Supports storm control

    Supports PoE+/PoE, IEEE 802.3at/af, with a maximum of 30W per port

    VLAN


    VLAN tag mode

    VLAN transparent mode

    VLAN trunk mode (up to 8 vlan)

    Multicast


    IGMPv1/v2/Snooping

    Up to 8 multicast vlan

    Up to 64 multicast groups

    QOS

    Supports 4 queues

    Supports SP and WRR

    Supports 802.1P

    Management



    CTC OAM 2.0 and 2.1

    ITU-T 984. x OMCI

    Support for WEB

    Support for TELNET

    Support for CLI


    Videos​

    Overview OP151AV1 WiFi 5 ONU I ZISA


    Ordering Information​

    Product Model
    Product Description

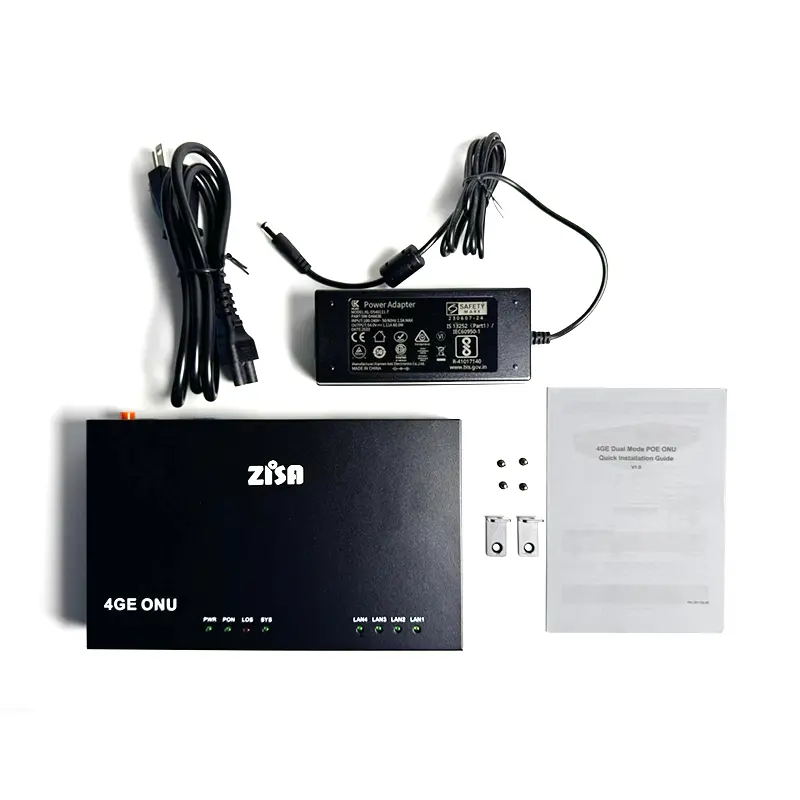

    Accessories

    OP154P

    		4GE (PoE+), Iron Shell

    DC 54V, 1.11A, External AC-DC Power Adaptor

    Resources​

     ZISA OP154P PoE ONU Datasheet​​
