OP151SI, XPON ONU Stick With MAC SFP 1310TX/1490RX 1.244G-TX/2.488G-RX Class B+ 20km I-Temp SC/UPC

(0 review)
P/N: OP151SI
$ 41.90 $ 41.90 Tax Excluded
¥ 41.90 Tax Excluded

Not Available For Sale

($ 0.00 / Units)

    This combination does not exist.

    • ZISA provides professional tech support and sales inquiry.
    • ZISA's engineer support customized according your inquire.

    Customized Now​​​​

    Contact Us

    Terms and Conditions
    14-Month Warranty I 7Days Return and Exchange | Shipping Within 5 Business Days

    Share

    OverviewFeaturesApplications​Specifications ResourcesOrdering Information​ Resources

    Overview

    OP151SI, XPON ONU Stick With MAC SFP 1310TX/1490RX 1.244G-TX/2.488G-RX Class B+ 20km I-Temp SC/UPC

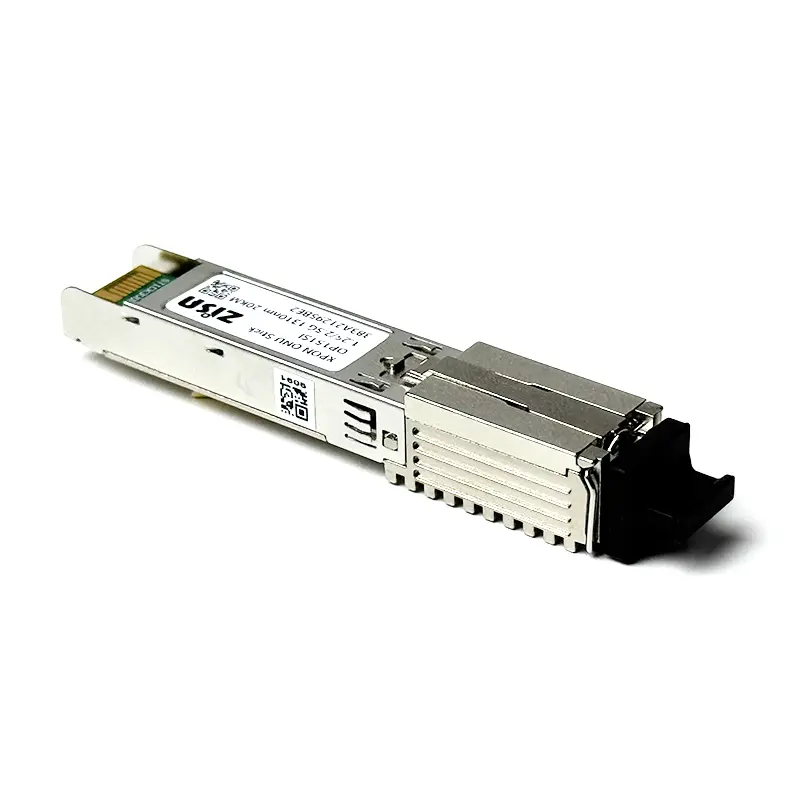

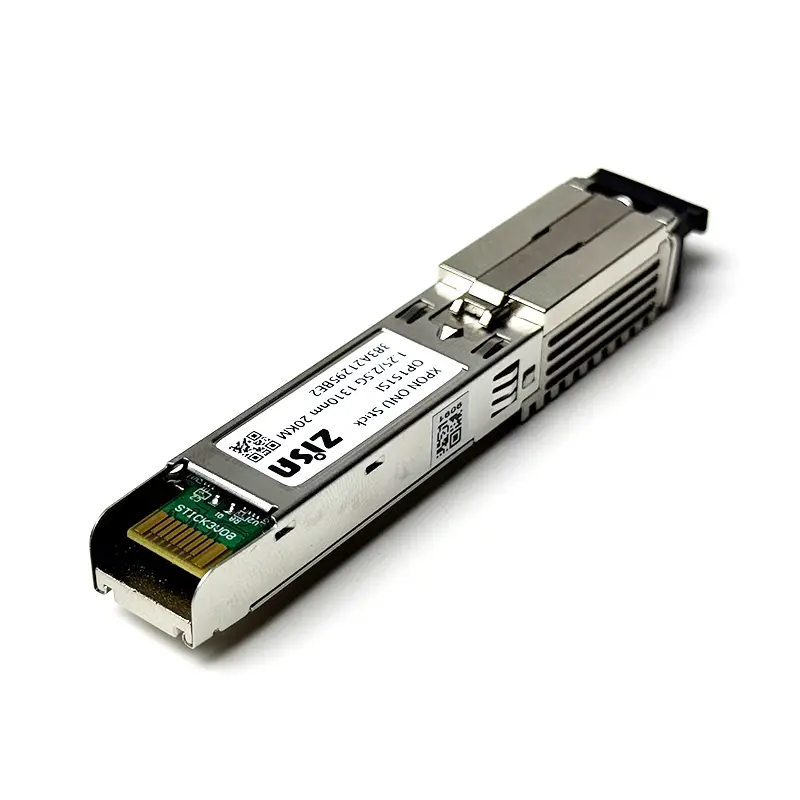

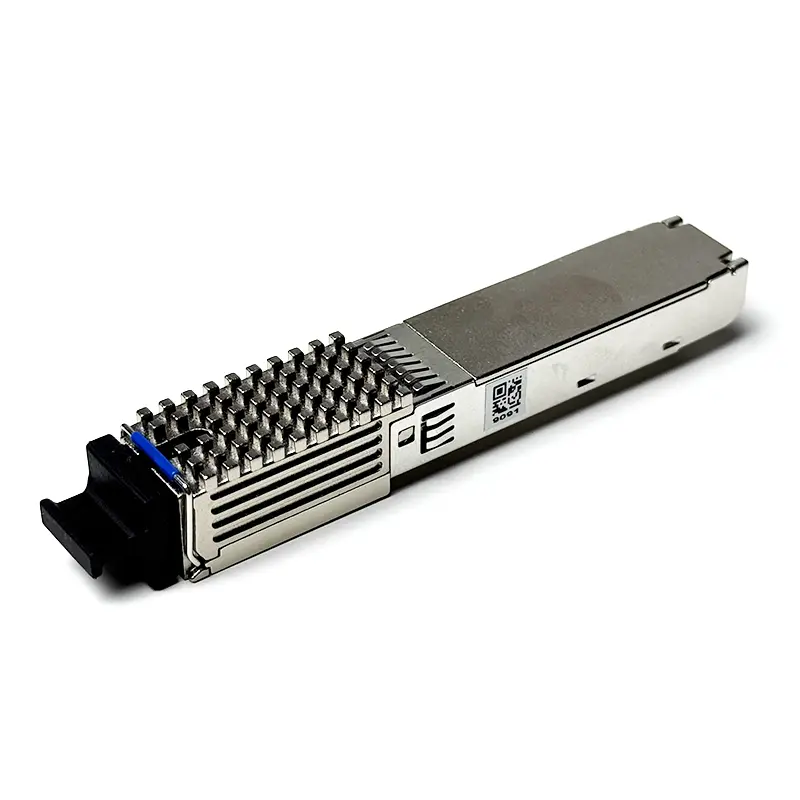

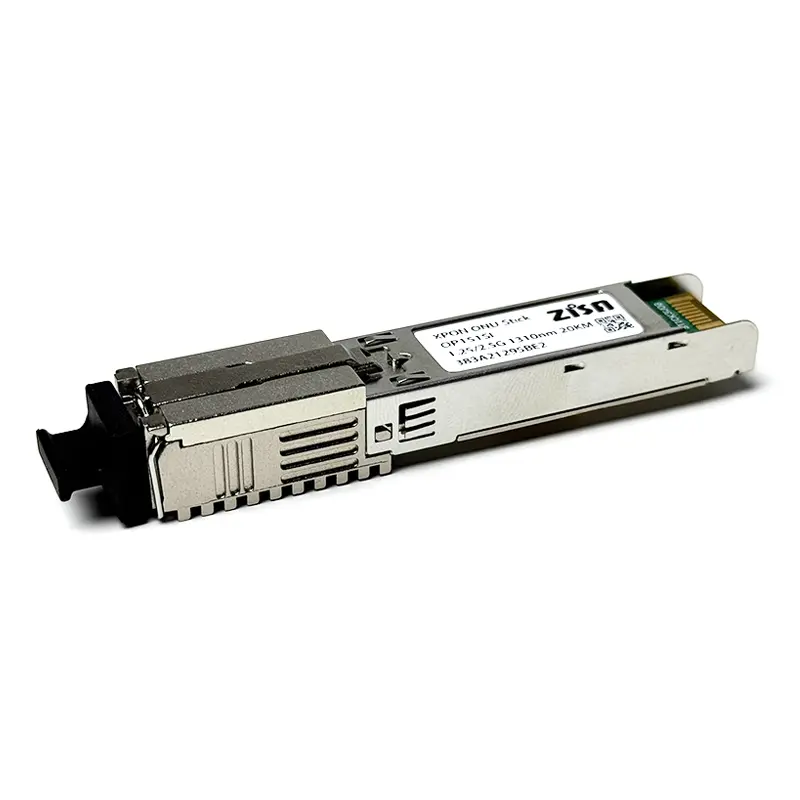

    The OP151SI XPON ONU Stick is a high performance module for single fiber communications that can be plugged into the SFP optical port of switch or router device to provide XPON netowrk access to the device. It using a 1310nm burstmode transmitter and a 1490nm continuous-mode receiver. It is used in the optical network terminal (ONT) for GPON ONU Class B+ applications with Mac inside.

    The SFP Stick ONU is based on the mature Gigabit GPON/EPON technology, highly reliable and easy to maintain.And it is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.

    Features

    • Smallest SFP ONU for Fast Deployment
    • XPON Auto-Adaptive GPON/EPON mode
    • Configuration Free, Plug&Play, Easy to Use
    • Web ONU Management and Control Interface (OMCI) Specification
    • MAC and SN can be modified
    • Web GUI firmware manament
    • High temperature resistant, operating temperature -40°C~ 85°C.
    • Ideally suited for Business Services and to GPON, EPON, FTTx, Wireless Backhaul

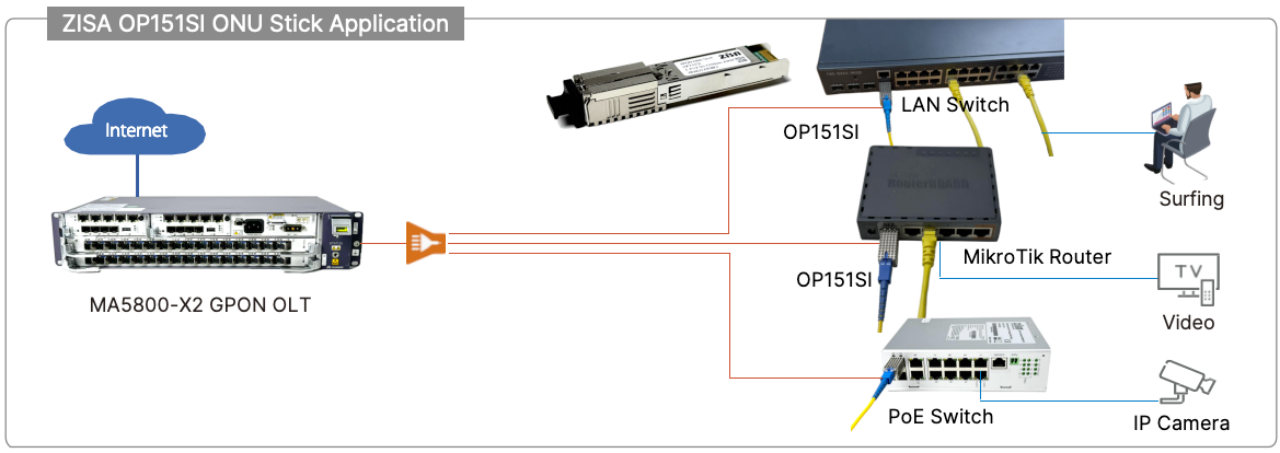

    Applications​


    Specifications

    Interface Parameter


    PON interface

    • 1 SC connector, PX20+ and Class B+ , GPON/EPON adaptive

    • Receiving sensitivity: ≤-28dBm

    • Transmitting optical power: 0～+4dBm

    • Transmission distance: 20KM

    Wavelength

    Tx-1310nm, Rx-1490nm

    Optical interface

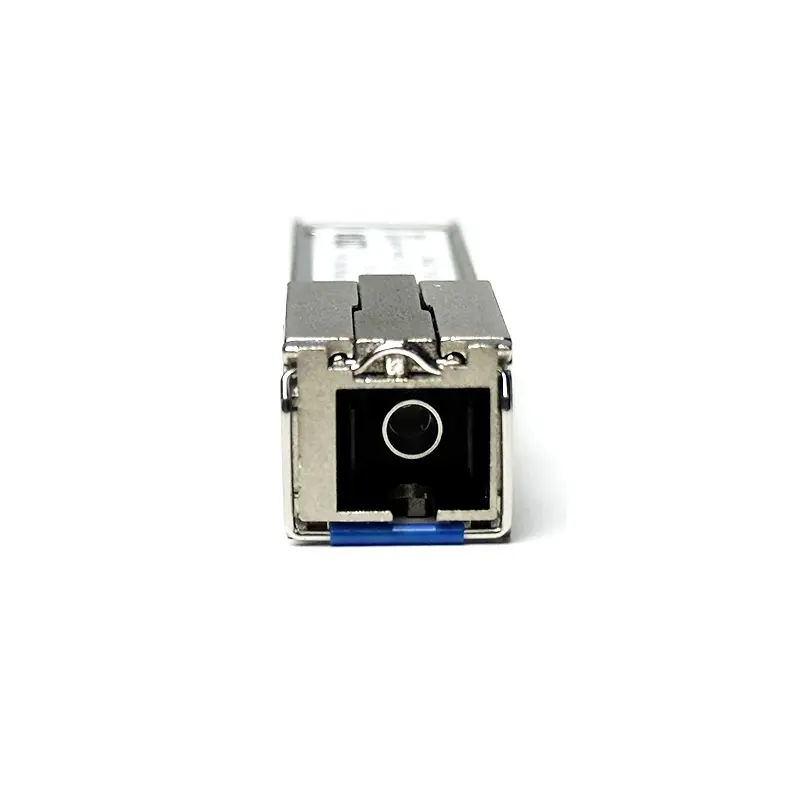

    SC/UPC connector  (SC/APC options)

    LAN interface

    1xGE Ethernet interfaces, SFP connector

    Hardware Parameter


    Dimension

    75mm×8.2mm×6.8mm(L×W×H)

    Net weight

    19g

    Operating condition

    Operating temperature:-40°C~85°C （I Temp）

    Operating temperature:0°C~70°C （C Temp）

    Humidity: 5%～95% (non-condensing)

    Storing condition

    Temperature : -30°C~60°C

    Humidity : 5%～95% (non-condensing)

    Power supply

    DC3.3V

    Power consumption

    ≤2.5W

    Function Data


    Satisfactory standard

    • Meet IEEE802.3ah standard

    • Meet ITU-T G.984.x

    Mode

    • SFU mode

    • Optionally support some functions of HGU(DHCP/PPPoE/NAT)

    Configuration MAC Address

    Support

    Configuration SN

    Support

    Configuration Vendor ID

    Support

    Configuration PVID

    Support

    DDMI

    Support

    Management

    HTTP/Telnet/SSH/TR069

    SFP MSA Standard

    Support

    VLAN

    VLAN Transport ransmission

    VLAN Switch funtion

    L2

    • 802.1D&802.1ad bridging

    • 802.1p CoS

    L3

    • IPv4

    • Forwarding PPPoE package

    Multicast

    • Forwarding IGMPv2/v3 package


    Resources


    Know detail OP151SI XPON ONU Stick | ZISA



    Ordering Information​

    Product Name
    Product Description
    Accessories

    OP151SI

    XPON ONU Stick, 1GE(SFP), SC/UPC, I-Temp

    NA

    Resources

     ZISA OP151SI XPON ONU Stick Datasheet​​
