Items

Specifications

Model No.

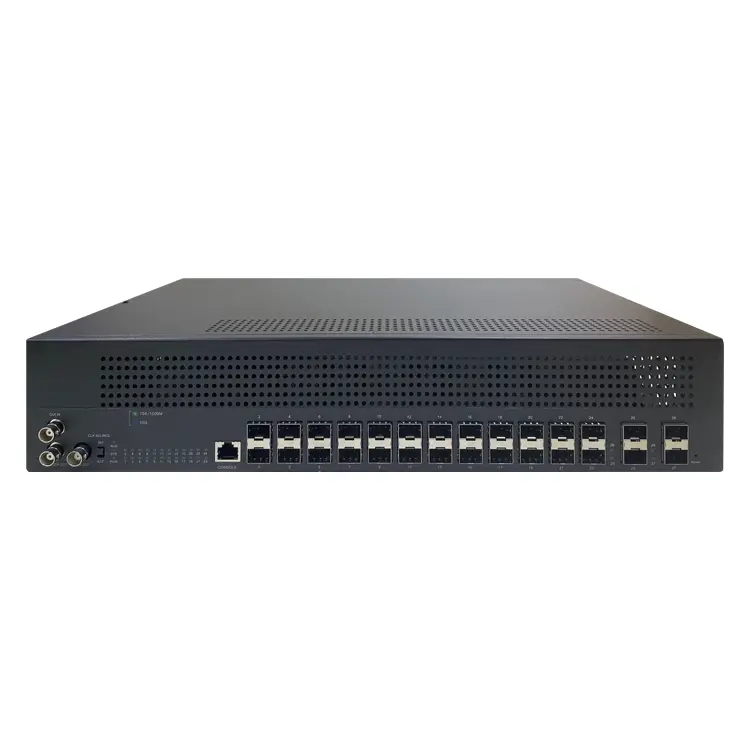

GHN3824

Key Components

1. RTL9311-CG+RTL8214QF-CGx6

2. Flash IC: MXIC 64M Byte

3. DDR: 4G bits

I/O ports

24x Giga ports, SFP

4 x 10G ports, SFP+

Reset Button: reset to default setting, re-start system

Console port by RJ45 type

USB2.0 port for configuration

LED Define

PWR: Green LED

- Off: power off or fail

- On: power on

SYS: Green LED

- Off: power off or fail

- On: system is ready

- Blinking: system booting up

Alert: Red LED

- Off: Switch is normal condition

- On: Alarm for system failure because of overheat, wrong voltage.

1-24 SFP Port LED:

Link/ACT:

- Off: port disconnected or link fail

- Green on: 100/1000Mbps connected

- Blinking: sending or receiving data

25-28 port LED:

SFP+:

         - Off: disconnected or fail

         - Blue: 10Gbps connected

         - Green: 1000Mbps connected

         - Blinking: data transmitting

HW feature

IEEE802.3ae SFP+

IEEE802.3az EEE

MAC address Table: 32K

Packet buffer size: 16Mbit

Jumbo Frame: 12K bytes

128Gbps switching capacity

Forwarding rate: 95.2Mpps (64-byte package size)

Data Transfer Rate

G.hn SISO/MIMO SFP: Up to 2000 Mbps(full duplex)

10 Gigabit SFP+:20 Gbps(full duplex)

System Monitor

HW Monitor IC: ADT7476

l Voltage Monitor

n Input Voltage: 12V (+/-7% Alarm Threshold)

n I/O Voltage: 3.3V (+/- 5% Alarm Threshold)

n DDR Voltage: 1.5V (+/- 5% Alarm Threshold)

n PHY Voltage: 1.1V (+/- 5% Alarm Threshold)

n MAC Voltage:0.9V (+/- 5% Alarm Threshold)

l Temperature Monitor

n BOARD: 0~80°C

n MAC: 0~85°C

n PHY: 0~85°C

Power Input

Internal power supply

Input: 90~264VAC/47~63Hz

Output: 12V/6A (Single Power Supply)

Reset button

Support reset to default configuration

Dimension

441(W) x 270(D) x 44(H) mm

FAN Design

3 Fan

Temperature

Operating: 0 ~ 50℃

Storage : -40 ~ 70℃

Humidity

Operating: 10% ~ 90% RH (non-condensing)

Storage: 5% ~ 90% RH (non-condensing)
