MA5800-X7, OLT Chassis With Fan Tray, 2*MPLB 10GE Control Cards, 2* PILA DC Power Supply
The MA5800-X7 multi-service access device is the first OLT in the industry with distributed architecture. It provides a unified carrying platform for multiple services, such as broadband, wireless, video, and monitoring. The MA5800 provides GPON, XG-PON, XGS-PON, and 10GE/GE access, and supports FTTH, FTTD, FTTB, and FTTC network construction modes. This makes it applicable to home access, enterprise access, mobile backhaul, and Wi-Fi hotspot backhaul scenarios.
Specifications
MA5800-X7 |

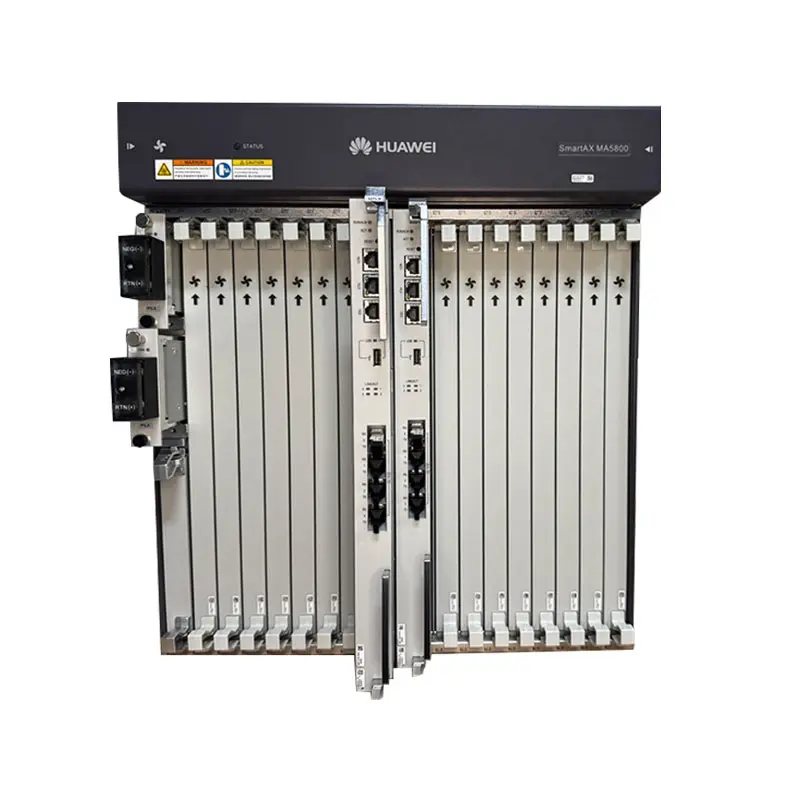

MA5800-X15 | MA5800-X17 | |
H x W x D (mm) | 263.9 x 442 x 268.7 | 486 x 442 x 287 | 486 x 493 x 287 |
Payload switching capacity of the control board | MPLA / MPLB : 7 Tbit/s MPLG: 7.3 Tbit/s | A / MPLB : 7 Tbit/s MPLG: 7.3 Tbit/s | A / MPLB : 7 Tbit/s MPLG: 7.3 Tbit/s |
Maximum payload bandwidth per service slot | 200 Gbit/s | 200 Gbit/s | 200 Gbit/s |
Number of concurrent 4K video users | 8000 | 16000 | 16000 |
Power supply mode | DC Power Supply (Dual for Backup) | DC Power Supply (Dual for Backup) | DC Power Supply (Dual for Backup) |
Rated voltage | -48 V / -60 V | -48 V / -60 V | -48 V / -60 V |
Ambient temperature | -40 °C to +65 °C *( Normal Operation) Minimum startup temperature: -25 °C * +65 °C indicates the temperature of the air intake vent of the service subrack
| -40 °C to +65 °C *( Normal Operation) Minimum startup temperature: -25 °C * +65 °C indicates the temperature of the air intake vent of the service subrack | -40 °C to +65 °C *( Normal Operation) Minimum startup temperature: -25 °C * +65 °C indicates the temperature of the air intake vent of the service subrack |
GPON/XG-PON/XGS-PON ports | 16 x 7 = 112 | 16 x 15 = 240 | 16 x 17 = 272 |
Upstream ports(Dual control boards for upstreamtransmission) | MPLA/MPLB：8 x 10GE/GE MPLG：2 x 100GE + 4 x 10GE/GE
| MPLA/MPLB：8 x 10GE/GE MPLG：2 x 100GE + 4 x 10GE/GE | MPLA/MPLB：8 x 10GE/GE MPLG：2 x 100GE + 4 x 10GE/GE |
Applications
Our design features offer a range of tools to create visually stunning websites. Utilize WYSIWYG editors, drag-and-drop building blocks, and Bootstrap-based templates for effortless customization. With professional themes and an intuitive system, you can design with ease and precision, ensuring a polished, responsive result.
Dual DC power Redunance
broadcom Chip
Dual Uplink Control Card
4*10G Uplink each card, max to 80G uplink
Flexiable Service Card slots
GPON & XG-PON & XGS-PON Card options
Features
Our design features offer a range of tools to create visually stunning websites. Utilize WYSIWYG editors, drag-and-drop building blocks, and Bootstrap-based templates for effortless customization. With professional themes and an intuitive system, you can design with ease and precision, ensuring a polished, responsive result.
Building blocks system
Create pages from scratch by dragging and dropping customizable building blocks. This system simplifies web design, making it accessible to all skill levels. Combine headers, images, and text sections to build cohesive layouts quickly and efficiently.
Bootstrap-Based Templates
Design Odoo templates easily with clean HTML and Bootstrap CSS. These templates offer a responsive, mobile-first design, making them simple to customize and perfect for any web project, from corporate sites to personal blogs.
Question & Answers
Q: Building blocks system
A: sdfssdfsdfsdfsdfsdfsfdsdf
Q: Building blocks system
A: Create pages from scratch by dragging and dropping customizable building blocks. This system simplifies web design, making it accessible to all skill levels. Combine headers, images, and text sections to build cohesive layouts quickly and efficiently.
Q: Building blocks system
A: Create pages from scratch by dragging and dropping customizable building blocks. This system simplifies web design, making it accessible to all skill levels. Combine headers, images, and text sections to build cohesive layouts quickly and efficiently.
Resources
MA5800-X7 OLT Datasheet
