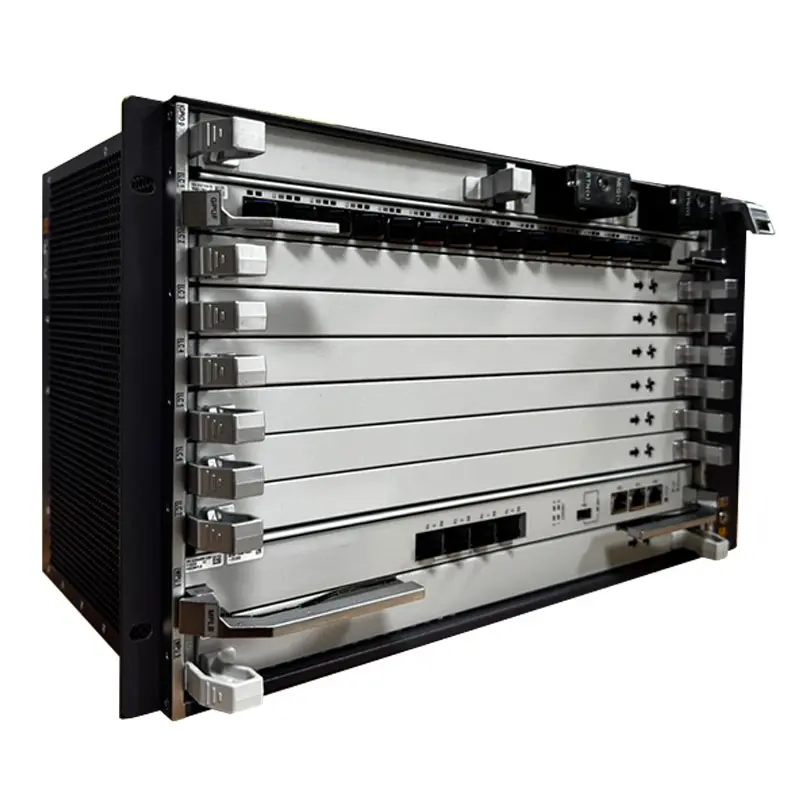

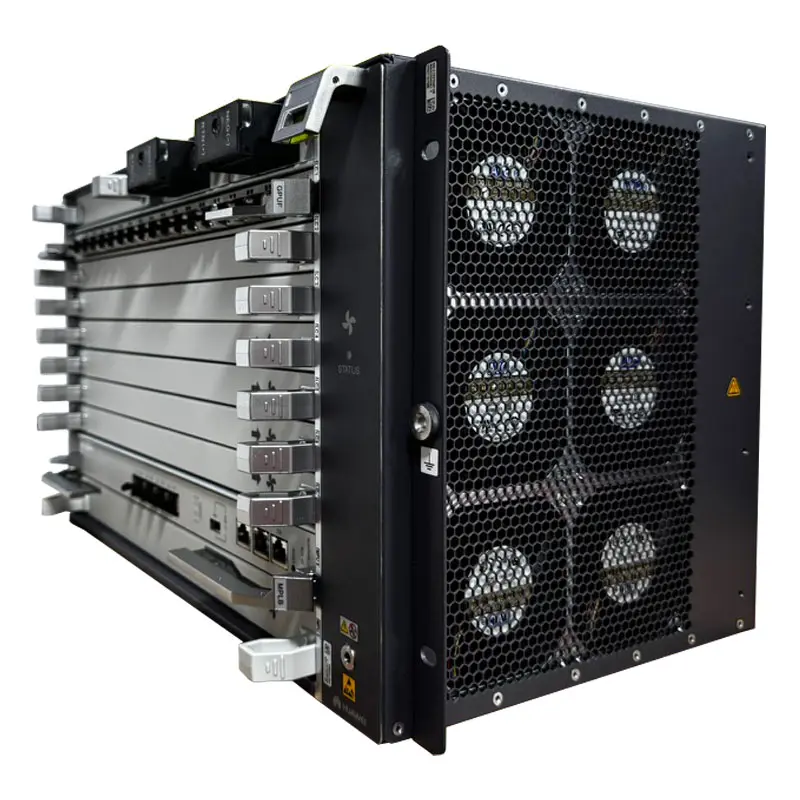

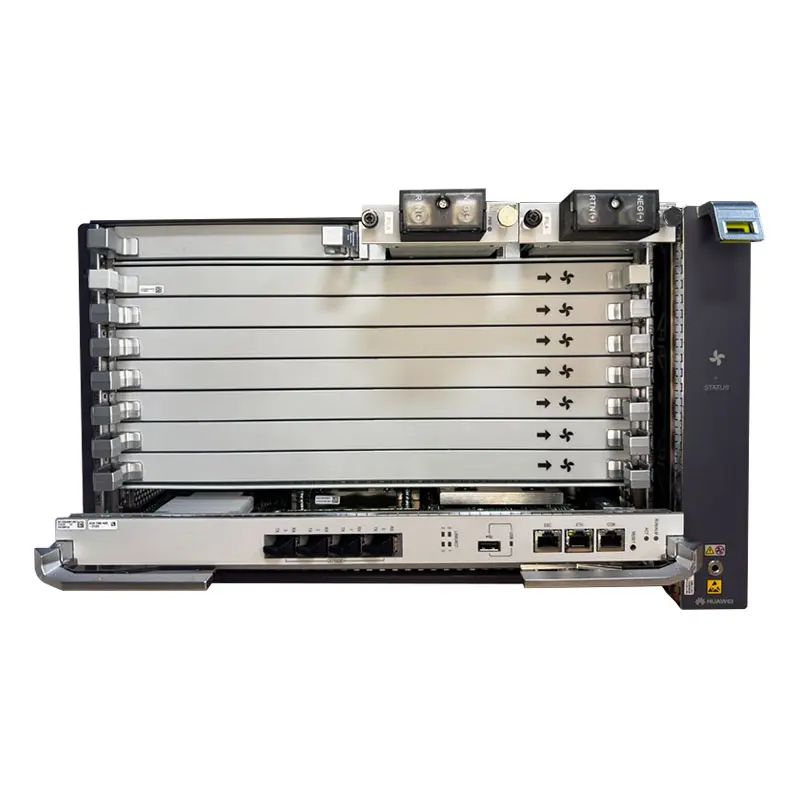

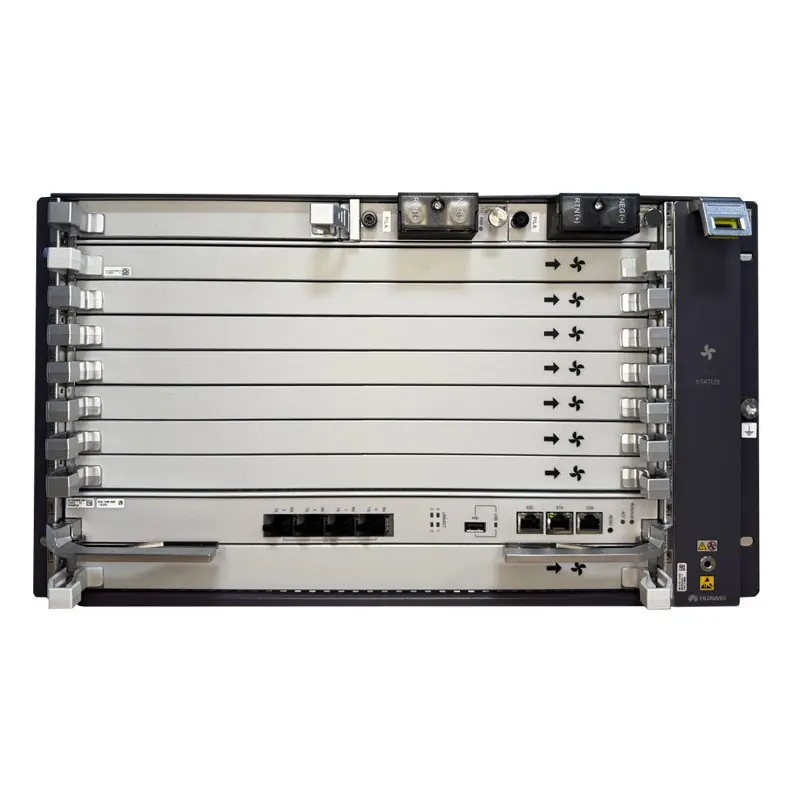

MA5800-X7, OLT Chassis With Fan Tray, 2*MPLB 10GE Control Cards, 2* PILA DC Power Supply
The MA5800-X7 multi-service access device is the first OLT in the industry with distributed architecture. It provides a unified carrying platform for multiple services, such as broadband, wireless, video, and monitoring. The MA5800 provides GPON, XG-PON, XGS-PON, and 10GE/GE access, and supports FTTH, FTTD, FTTB, and FTTC network construction modes. This makes it applicable to home access, enterprise access, mobile backhaul, and Wi-Fi hotspot backhaul scenarios.
Specifications
| MA5800-X15 | MA5800-X17 | |

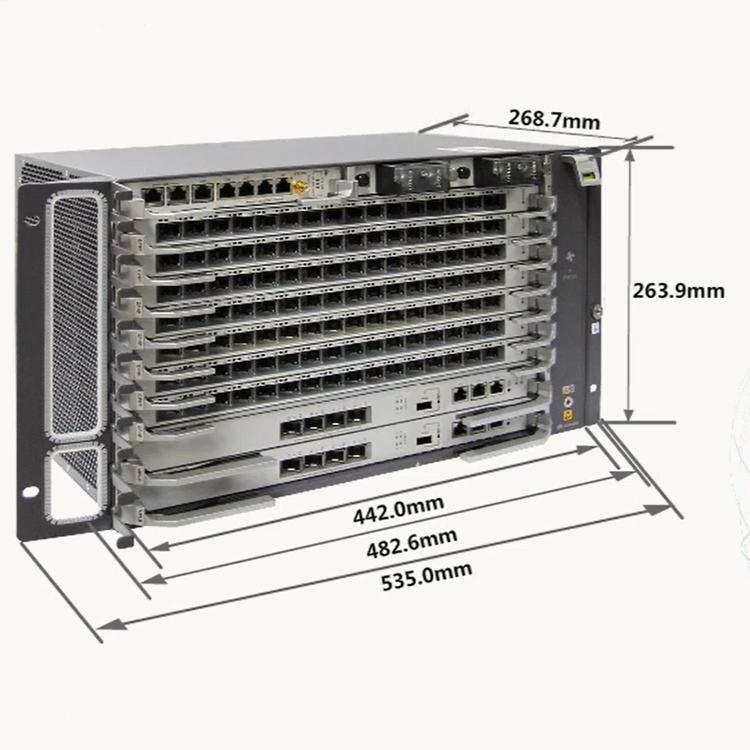

H x W x D (mm) | 263.9 x 442 x 268.7 | 486 x 442 x 287 | 486 x 493 x 287 |
Payload switching capacity of the control board | MPLA / MPLB : 7 Tbit/s MPLG: 7.3 Tbit/s | A / MPLB : 7 Tbit/s MPLG: 7.3 Tbit/s | A / MPLB : 7 Tbit/s MPLG: 7.3 Tbit/s |
Maximum payload bandwidth per service slot | 200 Gbit/s | 200 Gbit/s | 200 Gbit/s |
Number of concurrent 4K video users | 8000 | 16000 | 16000 |
Power supply mode | DC Power Supply (Dual for Backup) | DC Power Supply (Dual for Backup) | DC Power Supply (Dual for Backup) |
Rated voltage | -48 V / -60 V | -48 V / -60 V | -48 V / -60 V |
Ambient temperature | -40 °C to +65 °C *( Normal Operation) Minimum startup temperature: -25 °C * +65 °C indicates the temperature of the air intake vent of the service subrack
| -40 °C to +65 °C *( Normal Operation) Minimum startup temperature: -25 °C * +65 °C indicates the temperature of the air intake vent of the service subrack | -40 °C to +65 °C *( Normal Operation) Minimum startup temperature: -25 °C * +65 °C indicates the temperature of the air intake vent of the service subrack |
GPON/XG-PON/XGS-PON ports | 16 x 7 = 112 | 16 x 15 = 240 | 16 x 17 = 272 |
Upstream ports(Dual control boards for upstreamtransmission) | MPLA/MPLB：8 x 10GE/GE MPLG：2 x 100GE + 4 x 10GE/GE
| MPLA/MPLB：8 x 10GE/GE MPLG：2 x 100GE + 4 x 10GE/GE | MPLA/MPLB：8 x 10GE/GE MPLG：2 x 100GE + 4 x 10GE/GE |
Applications
Our design features offer a range of tools to create visually stunning websites. Utilize WYSIWYG editors, drag-and-drop building blocks, and Bootstrap-based templates for effortless customization. With professional themes and an intuitive system, you can design with ease and precision, ensuring a polished, responsive result.
Dual DC power Redunance
broadcom Chip
Dual Uplink Control Card
4*10G Uplink each card, max to 80G uplink
Flexiable Service Card slots
GPON & XG-PON & XGS-PON Card options
