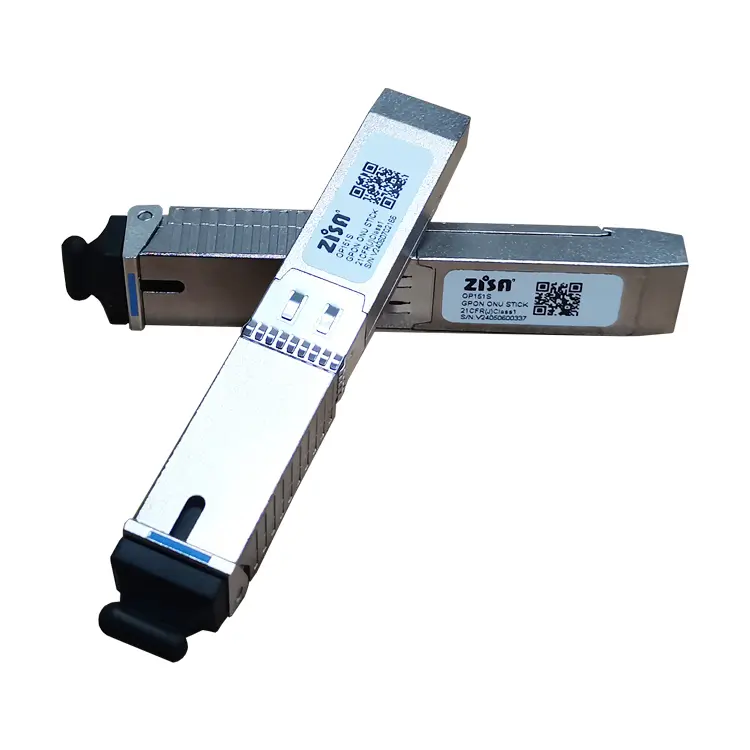

    OP151S, XPON ONU Stick With MAC SFP 1310TX/1490RX 1.244G-TX/2.488G-RX Class B+ 20km C-Temp SC/UPC

    The OP151S XPON ONU Stick is a high performance module for single fiber communications using a 1310nm burstmode transmitter and a 1490nm continuous-mode receiver. It is used in the optical network terminal (ONT) for GPON ONU Class B+ applications with Mac inside.

    The SFP Stick ONU is based on the mature Gigabit GPON/EPON technology, highly reliable and easy to maintain.And it is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.

    Feature


    •  Small SFP ONU for Fast Deployment
    •  XPON Auto-Adaptive GPON/EPON mode
    •  Configuration Free, Plug&Play, Easy to Use
    •  Web ONU Management and Control Interface (OMCI) Specification
    •  MAC and SN can be modified
    •  Ideally suited for Business Services and to GPON, EPON, FTTx, Wireless Backhaul

    Specifications


    Hardware Parameter


    Dimension

    14.1mm×79mm×13.6mm(H×W×D)

    Net weight

    35g

    Operating condition

    Temperature: 0℃~50℃

    Humidity: 10%~90% (non-condensing)

    Storing condition

    Temperature : -30℃~60℃

    Humidity : 10%~90% (non-condensing)

    Power supply

    DC3.3V

    Power consumption

    ≤4W


    Function Data


    Satisfactory standard

    • Meet IEEE802.3ah standard

    • Meet ITU-T G.984.x

    • Meet China's CTC3.0 standards

    SFU ONU

    • Bridging mode

    • Well connect with mainstream OLT

    L2

    • 802.1D&802.1ad bridging

    • 802.1p CoS

    L3

    • IPv4

    • Forwarding PPPoE package

    Multicast

    • Forwarding IGMPv2/v3 package


    Interface Parameter


    PON interface

    • 1 SC/UPC connector, PX20+ and Class B+

    • Receiving sensitivity: ≤-28dBm

    • Transmitting optical power: 0~+4dBm

    • Transmission distance: 20KM

    Wavelength

    Tx-1310nm, Rx-1490nm

    Optical interface

    SC/UPC connector

    LAN interface

    1xGE Ethernet interfaces, SFP connector



    Pin Description




    PIN

    Name

    Description

    Notes

    1

    VeeT

    Transmitter Ground

    1

    2

    Tx-Fault

    Transmitter Fault Indication,

    Normal “0”,Fault:Logic “1”

    output , LVTTL

    2

    3

    Tx-Disable

    TX Disable; turns off Tx laser

    3

    4

    Mod-Def(2)

    SDA I2C Data line

    2

    5

    Mod-Def(1)

    SCL I2C Clock line

    2

    6

    Mod-Def(0)

    Module Absent, connected to

    VeeR

    2

    7

    Rate Select

    For Dying Gasp detect, input low active



    8

    LOS

    Loss of Signal

    2

    9

    VeeR

    Receiver Ground

    1

    10

    VeeR

    Receiver Ground

    1

    11

    VeeR

    Receiver Ground

    1

    12

    RD-

    Inv. Received Data Output



    13

    RD+

    Received Data Output



    14

    VeeR

    Receiver Ground

    1

    15

    VccR

    Receiver Power

    1

    16

    VccT

    Transmitter Power



    17

    VeeT

    Transmitter Ground

    1

    18

    TD+

    Transmit Data In



    19

    TD-

    Inv.Transmit Data In



    20

    VeeT

    Transmitter Ground

    1

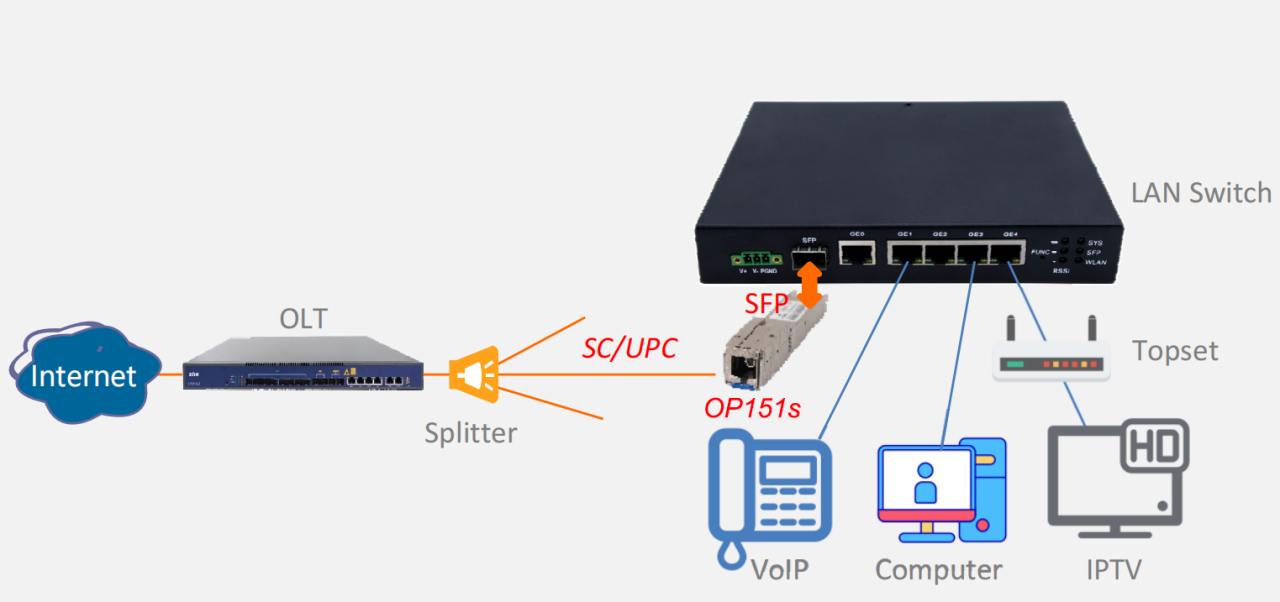

    Applications


    Ordering Information


    Product Name
    Product Description
    Accessories

    OP151S

    XPON ONU Stick, 1GE(SFP), SC/UPC

    NA
